Description

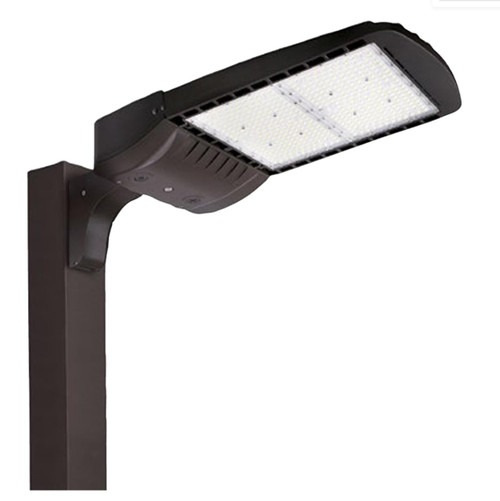

SAL-240-T3-40-U High-Output Outdoor Area Luminaire | Cool White (4000 K) | 145 LPW Efficacy And IP65 Rated
Optimized for site and area installations, the SekTor Area delivers high-output, energy-saving illumination that reduces maintenance cycles and improves nighttime visibility for commercial properties.
KEY FEATURES:
- High Efficiency: Delivers >145 LPW to cut energy use versus legacy HID fixtures.
- Precision Optics: PC TIR optics produce a consistent Type III distribution for uniform site lighting.
- Durable Construction: Two-piece die-cast aluminum housing with powder coat finish and IP65 rating for wet locations.
- Long Life & Low Maintenance: L70 lumen maintenance >100,000 hours with a 5-year limited warranty.
APPLICATIONS:
- Parking Lots
- Auto Dealerships
- Campus Grounds
- Usage Tip: Mount at recommended pole heights to maximize Type III roadway/site distribution.
SPECIFICATIONS:
- Wattage: 240W
- Nominal Lumens: 34,601 - 35,076 lm
- Efficacy: 145 LPW
- Color Temperature: Cool White (4000 K)
- CRI: >70
- L70 Lifetime: >100,000 Hrs
- Voltage: Universal 120-277VAC
- Amperage: 120VAC (2.0A), 277VAC (0.87A)
- Dimming: 0-10VDC Dimming
- Distribution: Type III
- Housing: Die-Cast Aluminum Housing
- Lens: PC TIR (Total Internal Reflection) Optics
- Operating Temperature: -40°C to 45°C
- Weight: 21.12 lbs
- Warranty: 5 Years Standard
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: cULus, DLC Premium, FCC
- Location Rating: IP65 Rated / Suitable For Wet Locations
