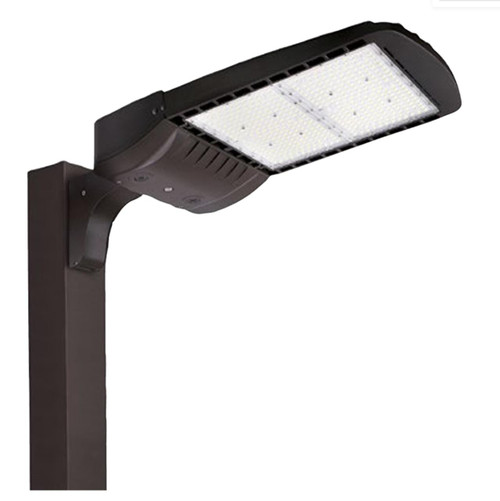

SAL-240-T5-40-U High-Efficiency Area Luminaire For Site Lighting | Cool White (4000 K) | IP65 Wet-Location, 0-10V Dimming
Designed for commercial outdoor sites, the SAL-240-T5-40-U delivers high-efficiency illumination with >145 LPW and L70 lumen maintenance beyond 100,000 hours to reduce energy use and maintenance cycles.
KEY FEATURES:
- High Efficacy: >145 LPW for strong energy savings compared to legacy HID fixtures.
- Long Service Life: L70 >100,000 hours minimizes relamping and maintenance costs.
- Robust Outdoor Rating: IP65 Wet-Location rating for reliable performance in harsh environments.
- Adaptive Controls: 0-10V dimming compatibility enables seamless integration with site control systems.
- Purpose-Built Optics: PC TIR optics provide optimized distribution and visual comfort for area lighting.
APPLICATIONS:
- General outdoor area and site lighting.
- Parking lots and retail centers.
- Security and perimeter illumination.
- Tip: Pair with 0-10V dimming controls to maximize energy savings.
SPECIFICATIONS:
- Wattage: 240W
- Lumens: 34,601 - 35,076
- Efficacy: 145 LPW
- Color Temperature: 4000K
- CRI: >70
- Distribution: Type V (per product code)
- Voltage: 120-277VAC (UNV)
- Amperage: 120VAC (2.0A), 277VAC (0.87A)
- Dimming: 0-10VDC Dimming
- Housing: Die-Cast Aluminum Housing
- Lens: PC TIR (Total Internal Reflection) Optics
- L70 Lifetime (hrs): >100,000 Hrs
- Operating Temperature: -40°C to 45°C
- Environment: IP65 Rated, 3G Rated
- Weight: 21.12 lbs
- Warranty: 5 Years Standard
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: cULus, DLC Premium, FCC
