Description

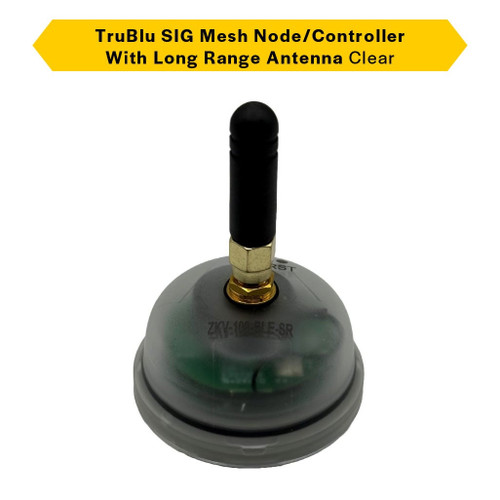

PSC-ZKV-WCM-100-BLE-SR/EXA Wireless TruBlu Fixture Controller | 0-10V Dimming, Zhaga Z-10 Receptacle, Weatherproof Area Lights
Designed to bring reliable wireless dimming to area lights and high-bays, this TruBlu fixture controller streamlines installation and control for retrofits and new builds. The compact module offers single-channel 0-10V output, Zhaga Z-10 mounting, and a weatherproof enclosure so fixtures stay controllable in harsh outdoor and industrial environments.
KEY FEATURES:
- Extended Wireless Control: Bluetooth Mesh connectivity with up to 1200 ft range for wide-area zoning and remote fixture management.
- Flexible Dimming: Single-channel 0-10V dimming output enables smooth lumen control for LED drivers and fixtures.
- Easy Integration: Zhaga Z-10 receptacle mount simplifies installation into compatible luminaires.
- Rugged Outdoor Ready: IP65 weatherproof housing rated for wet locations and wide temperature ranges.
- Configurable: Set up and manage zones using MC Connect TruBlu web portal or iOS app for fast commissioning.
- Reliable Platform: Bluetooth NLC certified with UL listing and a 5-year limited warranty for commercial deployments.
APPLICATIONS:
- Ideal for outdoor area lights, parking lot luminaires, and site lighting requiring wireless dimming.
- Perfect for high-bay and industrial fixtures in warehouses and manufacturing facilities.
- Well-suited for streetlighting and perimeter lighting mounted up to 40 ft using TruBlu-enabled fixtures.
- Usage Tip: Pair with TruBlu repeaters or Z10 sensors to extend mesh coverage and implement zone-based scheduling.
SPECIFICATIONS:
- Manufacturer: Halco Lighting Technologies
- Product Code: PSC-ZKV-WCM-100-BLE-SR/EXA
- UPC: 807154254149
- Input Voltage: 12-24VDC
- Channels: Single Channel
- Dimming: 0-10V
- Mount Options: Zhaga Z-10 Receptacle
- Environment Rating: Wet Location
- IP Rating: IP65
- Operating Temp Range: -30°C to 70°C (-22°F to 158°F)
- Sold In Multiples Of: 1
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: Bluetooth NLC Certified; UL Listed; FCC; CE
- Application Note: Intended for indoor and outdoor TruBlu-enabled fixtures mounted up to 40 ft; use repeaters to extend range where needed.
