Description
PSC-ZKV-BLE-PIR-KIT-SR-BN Wireless PIR Fixture Controller Kit | Occupancy Sensor For High/Low Bay Lighting With Photocell Function
Upgrade high-bay and floodlighting installations with a compact, weather-ready wireless motion control solution. The Halco TruBlu kit simplifies adding occupancy sensing and dimming control to Z-10 base fixtures, enabling energy savings, reduced maintenance, and easy configuration via the mwConnect TruBlu web portal or iOS app.
KEY FEATURES:

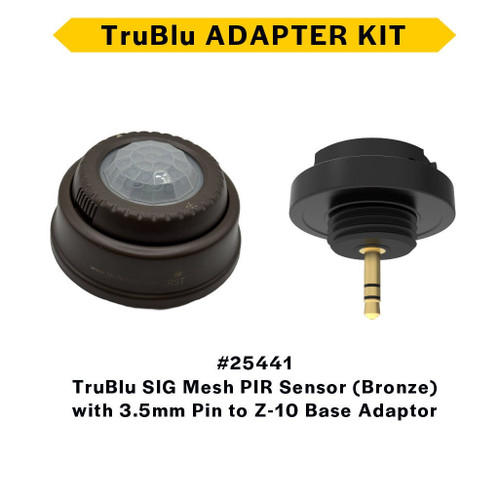

- Complete Kit: Includes the Bluetooth PIR Sensor (Halco 25412) and 3.5mm to Z-10 base adaptor for fast installation into compatible high/low bay luminaires.
- Wireless Control: Bluetooth Mesh networking for wireless dimming and fixture grouping with up to 100 ft range.
- 0-10V Dimming: Single-channel wireless fixture controller supports 0-10V dimming for smooth light level control.
- Photocell Functionality: Built-in photocell feature for daylight harvesting (note: cannot be used with a separate photocell on the same fixture).
- Rugged Design: IP65 rated and rated for -40°C to 70°C environments for indoor or outdoor high-bay applications.
APPLICATIONS:
- Ideal for warehouses and distribution centers requiring occupancy-based control.
- Well suited for gymnasiums and large retail or showroom spaces with high ceilings.
- Works with area lights, floods, and high bays installed 8-40 ft high.
- Installation Tip: Use the Z-10 base adaptor to retrofit existing fixtures and configure groups or schedules through the TruBlu portal or iOS app.
SPECIFICATIONS:
- Manufacturer: Halco
- Brand: Halco
- UPC: 807154254415
- Technology: LED Compatible Wireless Controller
- Kit Contents: Bluetooth PIR Sensor (25412) and 3.5mm to Z-10 Base Adaptor
- Wireless: Bluetooth Mesh (TruBlu)
- Range: Up to 100 ft
- Dimming: 0-10V, 1-Channel
- IP Rating: IP65
- Operating Temperature: -40°C to 70°C
- Finish: Bronze
- Applications: Warehouses, Gymnasiums, Retail Spaces, Big Box Retail, Showrooms
- Sold In Multiples Of: 1
CERTIFICATIONS & ADDITIONAL NOTES:
- Certification: Bluetooth NLC Certified
- Location Rating: Suitable for exterior use when installed in compatible fixtures (IP65).
