HRHB-1-LS-CS-H-HE-BL High-Voltage Round High Bay LED Fixture | CCT Selectable Lighting For Warehouses And Industrial Facilities

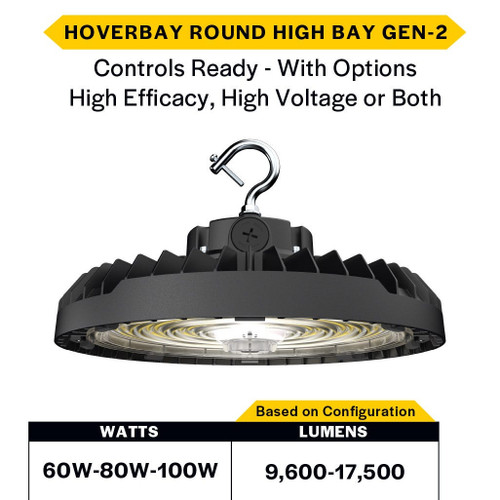

Built for fast upgrades in large indoor spaces, the HoverBay Round High Bay (Halco 30450) delivers field-selectable lumen output, beam angle, and CCT to match exact facility needs while simplifying installation and maintenance with a tool-less, swappable LED board and driver. The factory-installed high-voltage driver and IP65-rated construction make it ideal for demanding warehouse, distribution, and gymnasium environments.
KEY FEATURES:
- Field Selectable Outputs: Choose between three lumen and wattage settings for exact light levels without changing fixtures.
- Flexible Optical Control: Three adjustable beam angles (60°, 90° or 100°) tailor distribution for aisles, general areas, or wide coverage.
- Service-Friendly Design: Tool-less access with swappable driver and LED board reduces downtime and service costs.
- Durable Construction: Powder-coated die-cast aluminum housing with polycarbonate lens and IP65 wet-location rating for harsh environments.
- High-Voltage Ready: Factory-installed 277-480V driver for direct connection to higher voltage distributions.
- Controls Ready: Built-in 3.5mm receptacle for plug-and-play sensors and 0-10V dimming compatibility for energy management.
APPLICATIONS:
- Ideal for warehouses and distribution centers requiring scalable lumen output.
- Well suited for manufacturing facilities and gymnasiums with varying mounting heights.
- Great for big-box retail and showroom spaces needing robust, wet-rated high-bay lighting.
- Usage Tip: Use narrower beam (60°) for aisle racking and wider beam (100°) for open floor areas to optimize uniformity.
SPECIFICATIONS:
- Wattage: Selectable 60W / 80W / 100W
- Lumen Output: Selectable 10,500 lm / 14,000 lm / 17,500 lm
- Color Temperature: CCT Selectable (3500K, 4000K, 5000K)
- Dimmable: Yes (0-10V)
- Average Life: 100,000 hours
- CRI: 80
- Beam Angle: Selectable 60°, 90°, 100°
- Driver: High Voltage 277-480V (factory installed)
- Power Factor: 0.9
- Operating Temp: -40°C to 55°C (-40°F to 131°F)
- Lens: Polycarbonate
- Housing: Die-Cast Aluminum (Black or White finish)
- Mount: Hook Included (Pendant, Yoke, Chain, J-Box sold separately)
- Included Accessory: Safety Cable & Hook
- Sold In Multiples Of: 1
CERTIFICATIONS & ADDITIONAL NOTES:
- DLC: DLC 6.0 Premium
- Listings: UL Listed, FCC, RoHS
- Environment: Wet Location Rated, IP65
- Warranty: 5-year limited warranty
