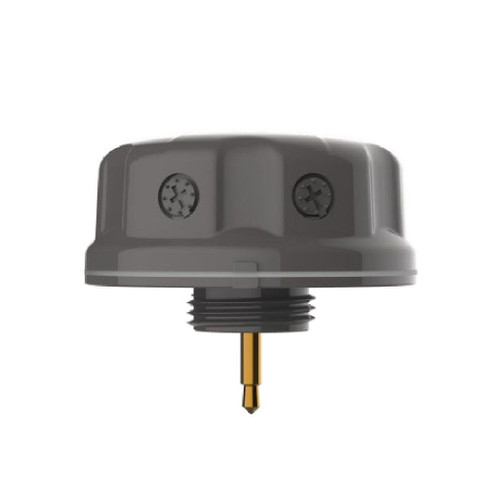

HSN-SEN-MS-DAY-010-3.5-BK Microwave Occupancy Sensor For High Ceilings | 0-10V Dimming, Photocell, IP65 Wet Location
Designed for high‑bay and industrial spaces, this Halco microwave sensor simplifies fixture controls by combining occupancy detection, daylight harvesting, and photocell functionality into a compact, plug‑and‑play module. It reduces energy waste and maintenance while supporting 0‑10V dimming and remote configuration for streamlined installations.
KEY FEATURES:
- Plug & Play Connectivity: 3.5mm audio pin simplifies installation and pairing with compatible fixtures and remotes.
- Adaptive Lighting: Built‑in daylight harvesting and photocell function reduce unnecessary lighting during daylight hours.
- Precision Control: 0-10V dimming with on‑device dial for hold time and standby dim levels to fine‑tune performance.
- High‑Bay Ready: Engineered for ceilings up to 39 ft, making it ideal for warehouses and large retail spaces.
- Durable Outdoor Use: IP65 rating ensures reliable operation in wet locations and harsh environments.
APPLICATIONS:
- Ideal for warehouses, manufacturing floors, and big‑box retail with high ceilings.
- Well suited for gymnasiums, showrooms, and other large open commercial spaces.
- Use in retrofit or new installations where centralized daylight and occupancy control is required.
- Installation Tip: Pair with Halco remote 90555 for full configuration and remote management of hold times and dimming.
SPECIFICATIONS:
- Manufacturer: Halco Lighting Technologies
- Product Code: HSN-SEN-MS-DAY-010-3.5-BK
- UPC: 807154373154
- Input Voltage: 12VDC
- Dimming: 0-10V Dimming
- Sensor Type: Microwave Occupancy Sensor
- Mounting/Range: For ceiling heights up to 39 ft
- Connection: 3.5mm Audio Pin (Plug & Play)
- Finish: Black
- IP Rating: IP65
- Operating Temp: Min -40°C (-40°F), Max 70°C (158°F)
- Weight: 0.11 lbs
- Packaging: Sold in Multiples of: 1
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Listed, FCC, RoHS
- Location Rating: Suitable for wet locations (IP65)
- Warranty: 5-year warranty
