Description

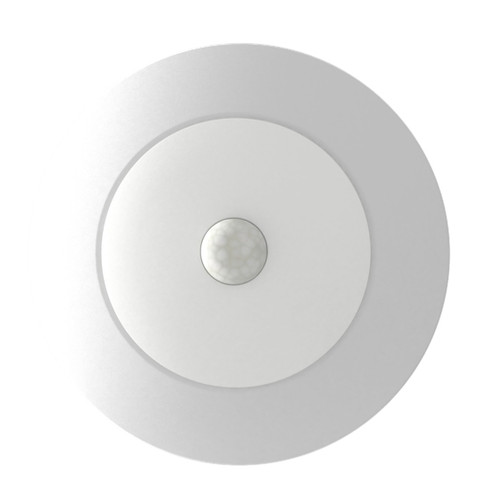

SMD-4-CS-120V-PIR 4-Inch Ceiling Downlight with Occupancy Sensor | CCT Selectable Wet Location Fixture for Hallways and Offices
Reduce energy waste and enjoy responsive lighting with the Halco SMD-4-CS-120V-PIR, a compact, all-in-one LED surface mount downlight. This versatile fixture provides selectable color temperatures and an integral PIR motion sensor, making it ideal for hallways, residential entries, and active shared spaces where automatic illumination adds both safety and efficiency.
KEY FEATURES:
- Adaptive Color Selection: Choose from 3000K, 4000K, or 5000K outputs to achieve the perfect white tone for any project.
- Automated Energy Savings: Built-in PIR sensor turns lights on only when movement is detected in the space.
- Low Profile & Stylish: Blends seamlessly into ceilings with a modern 4" round form factor and frosted lens.
- Consistent Light Quality: Rated CRI 90+, so colors stay vibrant and true-to-life in any setting.
- Reliable Performance: Engineered for over 50,000 hours of worry-free operation and minimal maintenance cycles.
- Contractor Ready: Quick to install and easy to specify, with selectable CCT at the fixture for on-the-job flexibility.
APPLICATIONS:
- Perfect for hallways in schools, apartment complexes, and healthcare facilities that require automatic illumination.
- Ideal for residential entryways, mud rooms, and utility areas where hands-free lighting improves convenience.
- Recommended for commercial offices seeking energy savings in corridors or common areas simply set and forget.
- Sensor best detects motion up to a 23 ft diameter at optimal mounting heights (11.5").
SPECIFICATIONS:
- Wattage: 10W
- Lumens: 820 (typical)
- CCT: Selectable 3000K, 4000K, 5000K
- CRI: >90
- Efficacy: 82 LPW
- L70 Lifetime: >50,000 hours
- Voltage: 120V, 50/60 Hz
- Dimming: Triac (Non-dimmable when PIR is active)
- Power Factor: >0.9
- Housing: Powder coated stamped steel
- Lens: Frosted acrylic
- Operating Temperature: -20°C to 40°C
- Weight: 0.41 lbs
- Sensor Timeout: 30 seconds (factory pre-set, not adjustable)
- PIR Sensor Range: Up to 23 ft diameter @ 11.5"
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: cULus, Energy Star®, RoHS, FCC Part 15, Title 24
- Location Rating: Wet Location
- Warranty: 5 Years (limited)
- Suitable for use in closets per NEC 410.16 (A)(3) & (C)(5)
