SMD-6-CS-120V-PIR Integrated Sensor LED Fixture | Versatile Ceiling Lighting for Commercial Offices, Schools, and Hallways

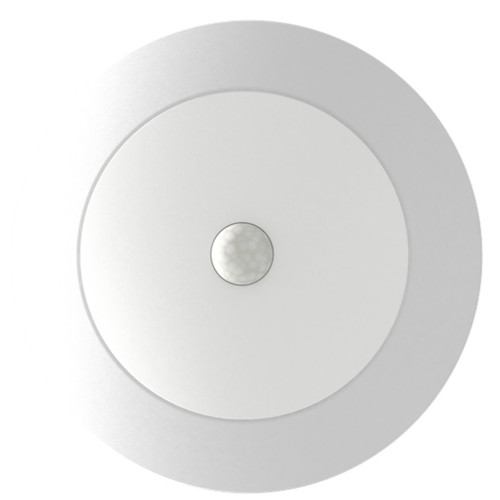

Transform the way you illuminate offices, hallways, and learning environments with the Halco 83894 SMD-6-CS-120V-PIR. This slim-profile, surface mount LED downlight delivers adaptive illumination automatically activating light as soon as motion is detected ensuring unoccupied spaces never waste energy. Selectable color temperature empowers you to tailor the ambiance for any application.
KEY FEATURES:
- Integrated PIR Motion Sensor: Hands-free activation automatically lights spaces when motion is detected, maximizing energy usage and convenience.
- CCT Selectable: Easily switch between Warm White, Cool White, or Daylight output (3000K, 4000K, 5000K) to suit diverse environments.
- High Visual Comfort: CRI 90+ delivers vibrant, natural color rendition for productive commercial settings.
- Sleek Design: Low-profile housing and frosted acrylic lens blend seamlessly with modern ceilings.
- Reliable Longevity: L70 rated for over 50,000 hours reduces maintenance needs for years.
APPLICATIONS:
- Perfect for commercial offices looking to boost efficiency with occupancy-based controls.
- Ideal for educational facilities such as K-12 schools and university hallways to ensure lighting when and where needed.
- Suitable for residential corridors and utility spaces where automatic illumination adds convenience and security.
- Best installed in 6-inch round surface mount applications requiring wet location rated fixtures.
SPECIFICATIONS:
- SKU: 83894
- Product Code: SMD-6-CS-120V-PIR
- Size: 6" Round
- Wattage: 15W
- Lumens: 1250
- Efficacy: 82 LPW
- Color Temperature: Selectable 3000K / 4000K / 5000K
- CRI: >90
- L70 Lifetime: >50,000 hours
- Voltage: 120V, 50/60 Hz
- Dimmable: Yes (Triac) (Non-dimmable when PIR engaged)
- Sensor: PIR motion sensor, 30 sec timeout, up to 23ft detection at 11.5" mount height
- Housing: Powder coated, stamped steel
- Lens: Frosted acrylic
- Operating Temp: -20°C to 40°C
- Warranty: 5 years
- Environment: Wet Location
- Weight: 0.56 lbs
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: cULus, Energy Star, RoHS, FCC Part 15, Title 24 compliant
- Location Rating: Wet Location, Suitable for closets per NFPA 70
- PIR Notes: Timeout preset to 30 seconds, non-adjustable
