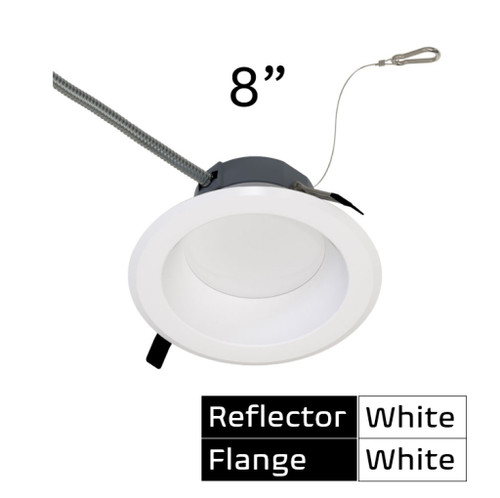

CDL-8-LS-CS-WH-DDV 8in Commercial Retrofit Downlight | CCT Selectable With Dual Dimming (Triac/ELV & 0-10V) For Offices And Retail
Designed for fast commercial retrofits, the Halco CDL-8 series lets installers and facility managers choose color temperature and output on-site while ensuring broad dimming compatibility and wet-location durability. The low-profile, can-or-canless design reduces installation time and minimizes maintenance for offices, retail, and institutional spaces.
KEY FEATURES:
- Dual Dimming Compatibility: Works with Triac/ELV phase-cut 120V and 0-10V controls for seamless integration into existing or upgraded dimming systems.
- CCT & Lumen Selectable: Five color temperatures and multiple lumen outputs let you tailor light quality and energy use at the jobsite.
- Wet-Location Rated: IP65 rating and Energy Star certification provide reliable performance in damp or exposed ceiling locations.
- Flexible Mounting: Mouse-trap steel spring clips enable quick can or canless installation with included cut-out template.
- Durable Finish: White powder-coated steel reflector and diffused polycarbonate lens for consistent, low-glare illumination.
APPLICATIONS:
- Ideal for office retrofits and open-plan workspaces.
- Well-suited for retail aisles and display lighting where color tuning improves merchandising.
- Excellent choice for schools and institutional interiors requiring high CRI and long life.
- Installation Tip: Select CCT and lumen level before finalizing trim to match adjacent fixtures and reduce rework.
SPECIFICATIONS:
- Manufacturer: Halco Lighting Technologies
- Model / Product Code: CDL-8-LS-CS-WH-DDV
- Wattage: 16W, 24W or 30W
- Lumens: Selectable 1800, 2700, 3500
- Color Temperature: Selectable 2700K, 3000K, 3500K, 4000K, 5000K
- CRI: 90
- Voltage: 120-277V
- Size / Aperture: 8in (Round)
- Beam Angle: 80° ± 10° (Wide)
- Average Life: 50,000 hours
- Power Factor: 0.9
- Operating Temp: -20°C to 40°C (-4°F to 104°F)
- Mount Included: Mouse Trap Steel Spring Clips and Cut Out Template
- Finish / Trim: White Reflector and White Flange
- Lens: Diffused, Textured Polycarbonate
- Housing: Powder Coated Steel Reflector
- Dimmable: Yes (Triac/ELV and 0-10V)
- Warranty: 5 years
- UPC: 807154892129
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: ETL Listed, Energy Star, FCC, Title 24, RoHS
- Location Rating: Wet Location (IP65)
- Emergency Backup: Not Included (Emergency option available in CDLEM family)
