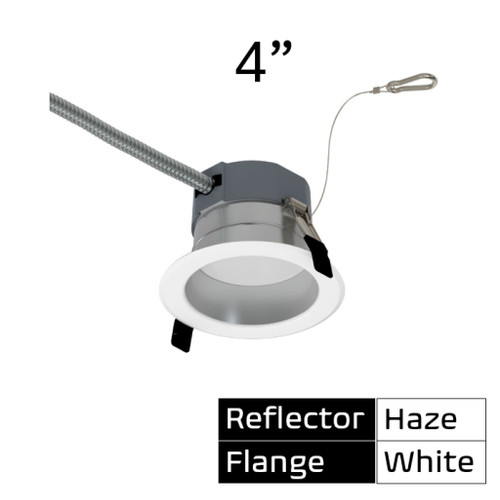

CDL-4-LS-CS-HZWH-DDV Commercial 4in Retrofit Downlight | CCT Selectable For Offices, Retail, And Educational Spaces
Designed for fast commercial retrofits, this Halco downlight simplifies upgrades by letting installers choose lumen output and color temperature on-site while supporting common dimming systems. Its low-profile housing and universal spring clips make can or canless installs quick, reducing labor and disruption in offices, schools, and retail spaces.
KEY FEATURES:
- Flexible Light Output: Selectable lumen settings (600 / 800 / 1000) allow easy matching to existing lighting levels.
- Adjustable Color Tone: Five color temperatures can be chosen (2700K–5000K) to suit occupant needs and interior finishes.
- Universal Dimming: Works with 120V TRIAC/ELV or 0-10V controls for broad compatibility with existing systems.
- Wet‑Location Rated: IP65 rating permits use in damp or wet areas where appropriate.
- High Quality Light: 90 CRI for accurate color rendering in commercial environments.
- Quick Installation: Mouse trap steel spring clips and quick‑connect lead speed up retrofit or new construction installs.
APPLICATIONS:
- Ideal for office parks, commercial buildings, and big‑box retail where retrofit flexibility is required.
- Well suited for K‑8 schools, colleges, and other educational facilities needing consistent, high‑CRI lighting.
- Perfect for architectural entrances and hallways where wet‑location rated fixtures are preferred.
- Usage Tip: Choose final CCT and lumen setting before trimming to ensure consistent appearance across fixtures.
SPECIFICATIONS:
- Wattage: 6W, 8W, or 10W
- Lumens: Selectable 600 / 800 / 1000
- Color Temperature: Selectable 2700K, 3000K, 3500K, 4000K, 5000K
- CRI: 90
- Voltage: 120-277V
- Dimmable: Yes (Triac/ELV or 0-10V)
- Beam Angle: 80° ±10°
- Average Life: 50,000 hours
- Size: 4in
- Trim Color / Finish: White Trim with Haze Reflector
- Lens: Diffused, Textured Polycarbonate
- Housing Material: Spun Aluminum Reflector
- Mount Included: Universal Mouse Trap Steel Spring Clips
- Power Factor: 0.9
- Operating Temp: -20C to 40C (-4F to 104F)
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: ETL Listed, Energy Star, Title 24, FCC, RoHS
- Location Rating: Wet Location (IP65)
- Emergency Backup: Not included (CDLEM family offers optional integral emergency versions separately)
