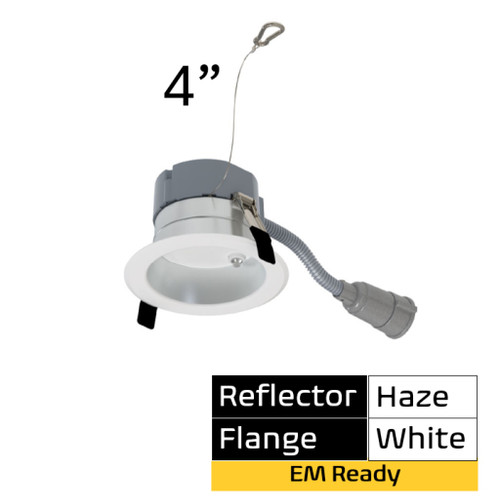

CDLEM-4-LS-CS-HZWH-DDV 4in Recessed Commercial Downlight, Wet-Location Rated, Universal Triac/0-10V Dimming, Emergency Battery Ready
Halco's CDLEM series simplifies commercial retrofits by offering on-site selectable lumen outputs and color temperatures with broad dimming compatibility, reducing installation time and long-term maintenance. The low-profile 4in design with haze reflector and white trim delivers comfortable, high-CRI light ideal for busy commercial spaces.
KEY FEATURES:
- Selectable Output & Color: Choose 7W, 9W, or 11W and 2700K–5000K on-site for precise illumination control.
- Universal Dimming: Compatible with Triac/ELV phase-cut and 0-10V controls for flexible dimming strategies.
- Wet-Location Rated: IP65 housing supports use in damp or wet ceiling applications.
- Emergency Ready: Quick-connect emergency battery compatibility enables adding an integral backup without rewiring (battery sold separately).
- Easy Installation: Mouse-trap steel spring clips, quick-connect cable, and included cutout template speed retrofit and canless installs.
APPLICATIONS:
- Office parks and commercial building general illumination.
- K–8 schools, colleges, and educational facilities.
- Big box retail stores and architectural building entrances.
- Installation Tip: Match selected CCT across continuous ceilings to ensure consistent color appearance.
SPECIFICATIONS:
- Manufacturer: Halco Lighting Technologies
- Size: 4in
- Watts: 7W, 9W, or 11W
- Lumens: Selectable 600, 800, or 1000
- Color Temperature: Selectable 2700K, 3000K, 3500K, 4000K, 5000K
- CRI: 90
- Dimmable: Yes (Triac/ELV and 0-10V)
- Average Life: 50,000 hours
- Beam Angle: 80° ±10°
- IP Rating: IP65 (Wet Location)
- Voltage: 120-277V
- Power Factor: 0.9
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: ETL Listed, Energy Star, FCC, Title 24, RoHS
- Location Rating: Suitable for Wet Locations
