Description

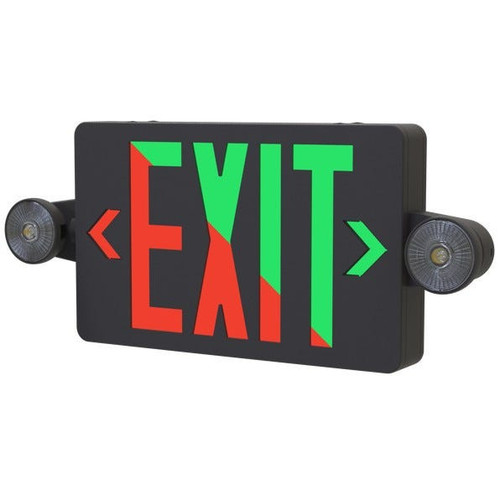

EMG-EXC-BK-RG-RC Combination Fixture | Universal Fit Exit & Egress LED Sign with Remote Capacity | Field-Configurable Faces
Upgrade facility safety and flexibility with the Halco 97123 Emergence Series combination LED exit sign and emergency lighting unit. This field-configurable solution brings reliable code compliance to corridors, stairwells, offices, and hospitality venues, ensuring clear egress indication and powerful illumination in critical situations. Its robust universal black housing, selectable red or green face, and remote capacity capability deliver unmatched installation versatility for new builds or retrofits.
KEY FEATURES:
- Field-Configurable Design: Select face color (red/green), single or double face, and chevrons on site for ultimate adaptability.
- Remote Capacity Included: Supports external remote heads for lighting extended paths of egress.
- Reliable Illumination: Dual fully rotatable 0.75W lamp heads provide a total of 160 lumens for dependable emergency lighting.
- Universal Installation: Ceiling or wall mounting with universal J-box pattern and included canopy ensures simple integration.
- Long Battery Life: Maintenance-free NiCad battery supports 90+ minutes of illumination after power loss.
APPLICATIONS:
- Perfect for offices, commercial hallways, and retail egress areas needing flexible exit/emergency coverage.
- Widely used in stairwells and building cores, easily adaptable to changing layout needs.
- Ideal when extended coverage is required use with compatible remote heads for complex paths of egress.
SPECIFICATIONS:
- Product SKU: 97123
- Product Code: EMG-EXC-BK-RG-RC
- Housing: Injection molded black flame-retardant thermoplastic
- Mounting: Ceiling or wall; canopy included
- Face: Injection molded thermoplastic stencil
- Lamp Heads: (2) 0.75W fully rotatable LEDs
- Lumens: 160 total
- Spacing: 22' at 7.5' on 6' path of egress
- Legend Letters: Uniformly illuminated 6" height, 3/4" stroke
- Chevrons: Field-selectable snap-out
- Letter Color: Field-selectable red/green
- Input Voltage: 120/277 VAC, 60Hz
- Battery: Maintenance free NiCad
- Recharge Time: <24 hours
- Emergency Time: 90 minutes+
- Remote Capacity: 1.5W
- Operating Temperature: 10°C to 40°C
- Warranty: 2 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: UL 924, CEC Title 20, NFPA 101, NFPA 70
- Location Rating: Damp location listed
