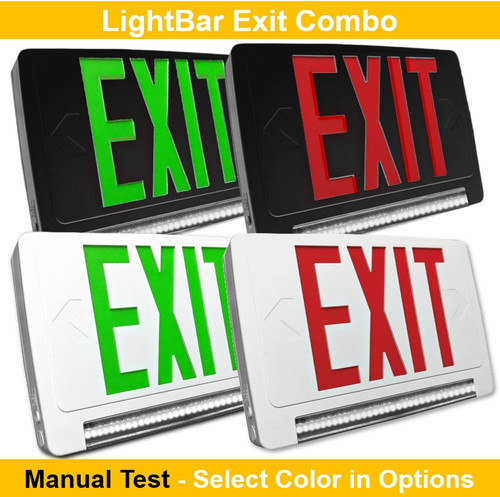

EMG-LBCU-R-WH-RC Combination Exit Sign for Hallways and Stairwells | Universal Mount | Field-Selectable Double Face
Enhance building safety compliance with the Halco 97129 Emergence Series LightBar Exit & Emergency Combo. Specifically engineered for hallways, stairwells, and doorway spaces, this unit merges a bright red exit stencil with integrated emergency illumination, minimizing fixture clutter above egress points. Its low-profile design and universal mounting canopy make it an ideal choice to meet strict code requirements and streamline installation in a wide range of commercial environments.
KEY FEATURES:
- Integrated Design: Combines exit sign and emergency lighting into a single compact fixture, opening up space above doors or in tight corridors.
- Field Flexibility: Allows selection between single or double face and includes snap-in/out chevrons for the correct directional guidance every time.
- Universal Installation: Ceiling or wall mount options canopy and J-Box pattern simplify upgrades and retrofits.
- Ultra-Bright Output: Adjustable light bar uses 36 LEDs to deliver effective egress illumination (184 lumens).
- Remote Ready: Built-in 1W remote capacity supports additional remote heads for expanded safety coverage if needed.
- Hassle-Free Battery Backup: Features a long-life, maintenance-free NiCad battery with solid state transfer circuit and automatic low-voltage protection.
APPLICATIONS:
- Perfect for commercial offices, hospitality, and medical facilities with restricted wall space.
- Excellent solution for multi-residential buildings where code-compliant egress is required over stairwells or exit corridors.
- Designed to fit spaces above doors or hallways where traditional separate exit and EM units may not fit.
SPECIFICATIONS:
- SKU: 97129
- Product Code: EMG-LBCU-R-WH-RC
- Fixture Type: LED Exit & Emergency Combo
- Input Voltage: 120 / 277 VAC, 60Hz
- Casing: White, injection-molded, 5VA flame-retardant thermoplastic
- Legend Color: Red
- Face: Field-selectable single or double face
- Illumination: (36) LEDs in adjustable light bar, 184 lumens
- Battery: Maintenance-free NiCad, >90 minutes discharge, <24 hour recharge
- Remote Capacity: 1W
- Operating Temperature: 0°C €€œ 50°C
- Testing Function: Manual Test Button w/Charging Indicator
- Dimensions: 12-½" x 9-…€º" x 8-¼" x 4-…œ" x 5-½" (see spec sheet for details)
- Warranty: 2 Year
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: UL 924, CEC Title 20, NFPA 101 & NFPA 70
- Location Rating: Damp location listed
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than the stated lead-time. All lead-times are estimates, and you will be notified by email if it will take longer than 5 business days to ship. Halco products ship directly from the manufacturer and require a combined minimum purchase of $150 in Halco merchandise. Multiple Halco items may be combined to meet the minimum.
