Description

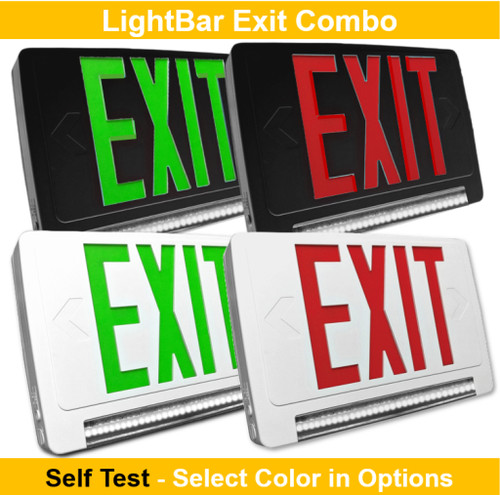

EMG-LBCU-G-BK-RC-SD Low-Profile Exit/Emergency Combo | Green Legend | Self-Test, Remote Capacity For Egress
Compact and code-focused, this Halco LightBar Exit/Emergency Combo combines low-profile exit signage with an integrated LED emergency lamp to simplify installation in corridors, stairwells, and constrained ceiling spaces while reducing maintenance with self-test diagnostics and remote-head capacity.
KEY FEATURES:
- Integrated Emergency Lighting: Bright 184-lumen adjustable LightBar provides clear egress illumination during power outages.
- 90-Minute Battery Backup: NiCad emergency battery standard for required runtime and reliable operation.
- Self-Test/Self-Diagnostics: Built-in self-test simplifies monthly/annual testing and reduces manual maintenance.
- Field Flexibility: Field-selectable single/double face and snap-out chevrons allow on-site configuration.
- Remote Capacity: 1W remote head capacity supports additional remote emergency units.
APPLICATIONS:
- Ideal for stairwells, corridor egress, and building exit paths.
- Well suited for offices, educational facilities, and retail spaces requiring low-profile emergency signage.
- Perfect for retrofit or new construction where ceiling or wall mounting above doorways is required.
- Usage Tip: Use the included canopy and mounting plate for quick surface or top-mount installations.
SPECIFICATIONS:
- Manufacturer: Halco
- Brand: Halco
- Technology: LED
- Voltage: 120-277VAC
- Input Frequency: 60Hz
- Lumens: 184
- Average Life: 100,000
- Warranty: 2 Year
- Operating Temp: 0C (32F) to 50C (122F)
- Dimmable: No
- Emergency Backup: Yes (NiCad battery, 90 minutes)
- Remote Capacity: 1W
- Weight Per Item: 3.4
- Mount Options: Ceiling, Wall, or End Mount (Canopy, Mounting Plate & Screws Included)
- Lens: UV Stabilized Acrylic
- Housing Material: Injection molded 5VA Flame-retardant Thermoplastic
- Light Style: Lightbar
- Environment: Damp or Dry Locations
CERTIFICATIONS & ADDITIONAL NOTES:
- Listing: UL Listed
- Compliance: UL 924 Damp Location Listed - NFPA 101 and NFPA 70 - CEC T20 Compliant
- RoHS: Yes
- Title 20: Yes
