Description

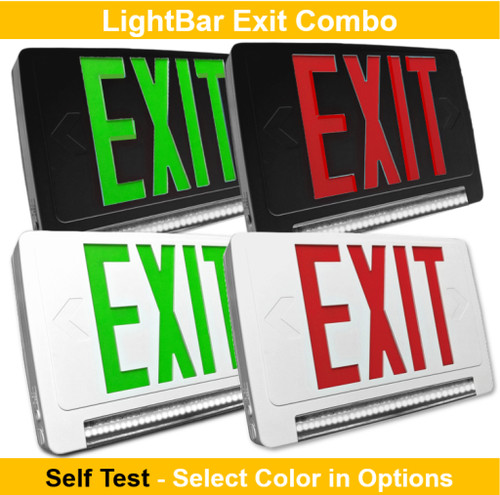

EMG-LBCU-G-WH-RC-SD Low-Profile Exit & Emergency Combo | Green Legend White Housing With Remote Capacity And Self-Test Diagnostics
Delivering a compact, code-ready solution for corridors and stairways, this Halco LightBar combination exit and emergency unit provides clear green legend egress indication with an integrated, adjustable LED lightbar and a reliable 90-minute NiCad backup for uninterrupted operation during outages.
KEY FEATURES:
- Integrated Emergency Backup: 90-minute NiCad battery backup with Self-Test Self-Diagnostics for code-compliant egress lighting.
- Low-Profile Design: Slim lightbar and housing fit restricted spaces above doorways and in corridors.
- Field Flexibility: Field-selectable single or double-face and snap-out chevrons for quick on-site configuration.
- Remote Capacity: 1W remote head capacity allows addition of an auxiliary remote emergency lamp.
- Durable Construction: Injection-molded 5VA flame-retardant thermoplastic with UV-stabilized acrylic lens.
APPLICATIONS:
- Ideal for office corridors, stairwells, and educational facility egress paths.
- Suitable for retail back-of-house corridors and hospitality service areas.
- Well-suited to retrofit and new construction where low-profile emergency signage is required.
- Installation Tip: Mount above doorways or at corridor junctions and add a remote head for extended visibility where needed.
SPECIFICATIONS:
- Technology: LED
- Voltage: 120-277VAC
- Input Frequency: 60Hz
- Lumens: 184
- Average Life: 100,000
- Warranty (years): 2 Year
- Min Operating Temp: 0C (32F)
- Max Operating Temp: 50C (122F)
- Mount Options: Ceiling, Wall or End Mount
- Mount Included: Canopy, Mounting Plate & Screws Included
- Lens: UV Stabilized Acrylic
- Housing Material: Injection molded 5VA Flame-retardant Thermoplastic
- Remote Capacity: 1W
- Dimmable: No
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL 924 Damp Location Listed - NFPA 101 and NFPA 70 - CEC T20 Compliant
- UL Listed: Yes
- Environment Rating: Damp or Dry
- Packaging: Inner Pack 1, Master Carton Size 6
