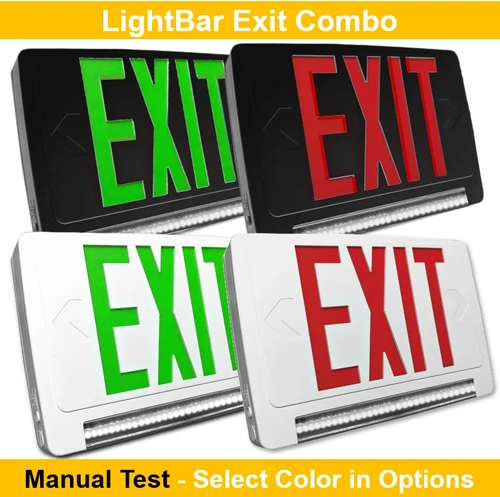

EMG-LBCU-G-WH-RC Low-Profile LightBar Exit And Emergency Combo | Green Face, Remote Capacity, Ceiling/Wall Mount For Hallways
Designed for compact egress locations, the Halco Emergence LightBar Combo pairs a low-profile exit sign with an integrated, adjustable LED lightbar to provide reliable emergency illumination above doorways and in tight passages. The included canopy and universal mounting options simplify installation on ceilings, walls, or ends while delivering bright guidance during power loss.
KEY FEATURES:
- 90min NiCad Backup: Built-in NiCad emergency battery with Manual Test Button and charging indicator for dependable emergency operation.
- Adjustable LightBar: Bright, adjustable 184 lumen LED lightbar directs egress lighting where needed.
- Field Flexibility: Field-selectable snap-out chevrons and single/double face configuration adapt to site requirements.
- Remote Capacity: 1W remote capacity supports one additional remote head for expanded coverage.
- Durable Construction: Injection-molded 5VA flame-retardant thermoplastic housing with UV-stabilized acrylic lens.
APPLICATIONS:
- Ideal for hallways and stairwells in commercial and institutional buildings.
- Well suited for offices and educational facilities requiring code-compliant egress lighting.
- Perfect for retail corridors and other restricted spaces above doorways.
- Installation Tip: Mount above exits or along egress paths for optimal visibility and compliance.
SPECIFICATIONS:
- Voltage: 120-277VAC
- Lumens: 184
- Average Life: 100,000 hours
- Warranty: 2 Year
- Operating Temperature: 0°C (32°F) to 50°C (122°F)
- Mount Options: Ceiling, Wall, or End Mount (Canopy, Mounting Plate & Screws Included)
- Lens: UV Stabilized Acrylic
- Housing Material: Injection Molded 5VA Flame-Retardant Thermoplastic
- Dimmable: No
- Emergency Backup: Yes (90min NiCad)
- Weight: 3.4 lb (per item)
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: UL 924 Damp Location Listed - NFPA 101 and NFPA 70
- Compliance: CEC Title 20 Compliant; RoHS
- Location Rating: Suitable For Damp Or Dry Locations
