Description

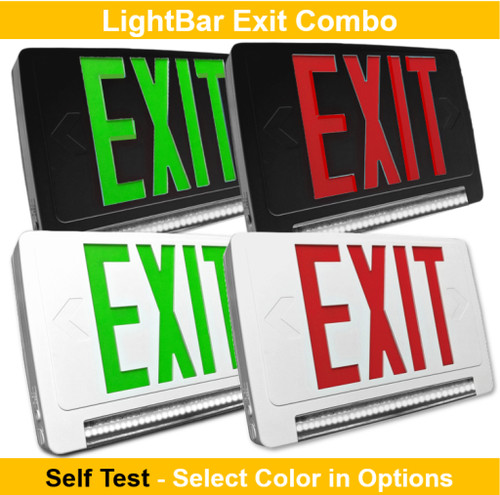

EMG-LBCU-R-WH-RC-SD Combination Exit Sign with Red Letters | Remote-Capable Emergency Unit for Versatile Life Safety Applications
The Halco 97133 LightBar Combo is engineered to maximize safety and minimize maintenance in commercial hallways, stairwells, and public buildings. This all-in-one exit sign and emergency light helps facility managers keep pathways compliant and visible during power loss now with advanced self-diagnostic technology for added peace of mind. Its slim profile and universal mounting options make it the go-to solution for challenging spaces above doorways and crowded corridors.
KEY FEATURES:
- Integrated Emergency Lighting: Combines exit sign with powerful adjustable LED light bar for clear egress illumination.
- Ease of Compliance: Includes self-diagnostics for automatic testing and status indication, reducing inspection labor.
- Remote Capacity: Supports up to 1W external emergency heads for extended coverage in larger or complex spaces.
- Flexible Mounting: Universal J-box pattern and included canopy enable ceiling or wall installations even in restrictive locations.
- Energy & Maintenance Savings: Highly efficient, long-life LEDs eliminate frequent relamping and consume minimal energy.
- Customizable Design: Red legend, field-selectable single or double face, and snap-out chevrons for site-specific needs.
APPLICATIONS:
- Perfect for offices, retail shops, and multi-family residential corridors seeking streamlined emergency egress solutions.
- Well-suited to hospital, hospitality, and educational facility exit pathways where testing compliance is a must.
- Ideal for mounting above doors or tight wall spaces with a need for battery-backed illumination and code compliance.
SPECIFICATIONS:
- SKU / Product Code: 97133 / EMG-LBCU-R-WH-RC-SD
- Type: Combination Exit Sign & Emergency Light
- Legend Color: Red
- Housing Color: White
- Face: Field-selectable single/double
- Lamp Heads: (36) LEDs in 1 adjustable light bar
- Lumens: 184
- Battery: Maintenance-free NiCad
- Operating Time: 90 minutes+
- Input Voltage: 120 / 277 VAC, 60Hz
- Remote Capacity: 1W
- Testing Function: Self-Test / Self-Diagnostics
- Operating Temp: 0°C €€œ 50°C
- Mounting: Ceiling/Wall, Canopy Included
- Recharge Time: <24 hours
- Dimensions: 12-½" W x 9-…€º" H x 8-¼" D
- Warranty: 2 Year
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: UL 924, CEC Title 20, NFPA 101 & 70
- Location Rating: Damp Location Listed
