Description
100W HID Replacement - 4,075/4,240/3,995 lm - Wattage and CCT Selectable - Type B Ballast Bypass

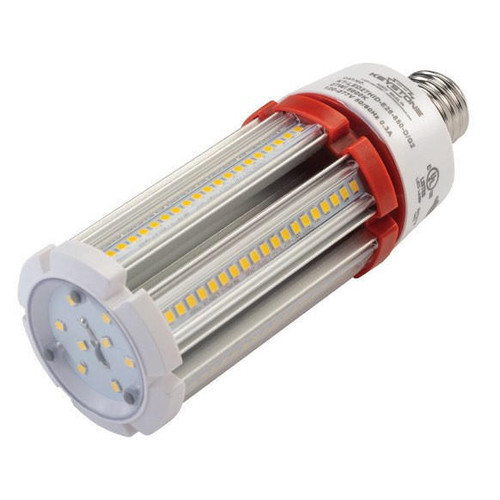

The Keystone KT-LED27PSHID-H-E26-8CSB-D is a wattage-selectable LED corn bulb rated to replace compatible 100W HID lamps from an E26 Medium base. Shop related high lumen LEDs to compare replacement wattage, lumen output, base type, voltage and installation requirements.
Product Specifications
- Brand: Keystone Technologies
- Manufacturer Model: KT-LED27PSHID-H-E26-8CSB-D
- Actual LED Wattage: Selectable 12W/18W/27W
- HID Replacement: 100W
- Lumen Output: Selectable 4,075/4,240/3,995 lm
- Color Temperature: CCT Selectable (3000K/4000K/5000K)
- Base: E26 Medium
- Operation Type: Type B | Ballast Bypass (direct-wire line voltage)
- Voltage: 120-277V
- CRI: 80
- Dimmable: No
- Bulb Shape: Corn
- Maximum Overall Length: 7.09 in
- Diameter: 3.62 in
- Rated Life: 50,000 hours
- Certifications: UL Listed
- Warranty: 5 Year
Benefits
- Field-selectable wattage reduces the number of replacement SKUs to stock
- Selectable color temperature lets one lamp cover multiple installations
- Retains the existing fixture housing when replacing compatible 100W HID lamps
- Type B ballast-bypass operation removes the existing ballast from the circuit
Applications
- Compatible post-top and area-light fixtures
- Compatible wall packs and security lights
- High bays and low bays with adequate lamp clearance
- Parking lot and shoebox fixtures
Downloads
Disclaimers
*This product is built to order and typically ships in 2 to 3 business days. Larger quantities may require additional processing time. All lead times are estimates, and you will be notified by email if the order is expected to take longer than 5 business days to ship.
