Keystone KT-LED36PSHID-EX39-8CSB-D

SKU:
KT-LED36PSHID-EX39-8CSB-D
Typically ships in 2-3 business days* View full description
$65.10
Customer Reviews

Description

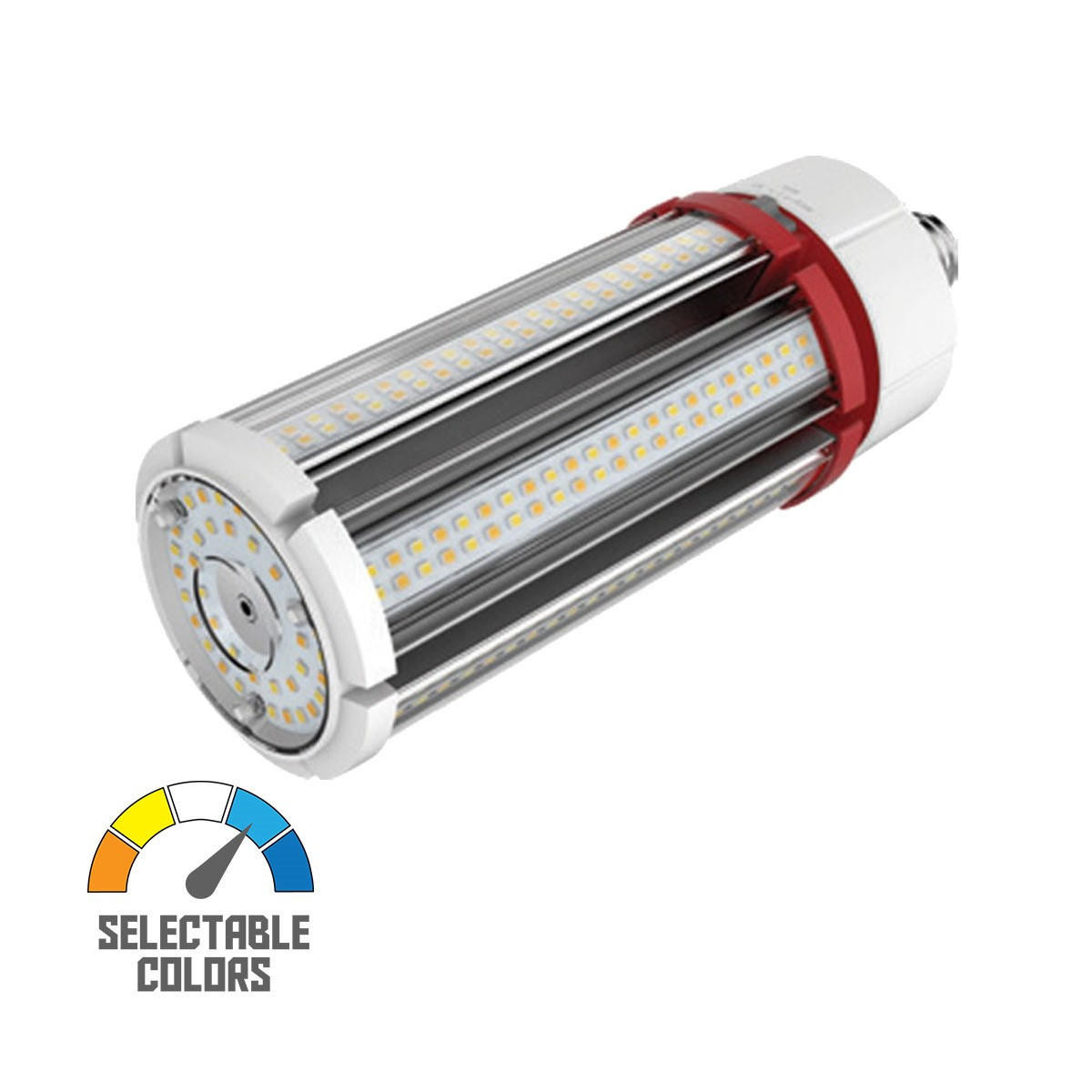

HID Replacement LED Lamp | Power Select + Color Select | EX39 Base

Keystone's wattage selectable and CCT-tunable HID LED lamps are a versatile all-in-one option to upgrade your outdated metal halide post-top / bollard lighting to long lasting, energy efficient LED technology. These lamps utilize Keystone's Power Select and Color Select technology, allowing for field adjustability of both wattage/lumen output and color temperature outputs. Choose between warm 30K, neutral 40K, or daylight 50K white light color temperature options as well as 3 different wattage levels to alter the brightness of the lamp. They are suitable for use in totally enclosed fixtures, and easily integrate optional sensors that plug right into the end of the lamp (see ‘frequently bought together’ products).

Features

  • Replacement for conventional metal halide lamp
  • Keystone Power Select Technology (36/27/18W)
  • Keystone Color Select Technology (3000/4000/5000K)
  • 50,000 + hour lifetime
  • Environmentally friendly: No mercury used
  • Instant startup
  • Operating temperature: −40°C/−40°F to 60°C/140°F
  • UL listed
  • Integral driver, eliminates the need for external driver or ballast; includes 4kV surge protection
  • IP64 rated; integrated heat sink quickly dissipates heat and guides water intrusion out of the lamp
  • Suitable for use in fully enclosed fixture. Minimum lamp compartment dimensions: 8in x 8in x 9in
  • Do not use with standard dimmers. Not compatible with phase dimmers. Dimming functions with sensors only

Downloads


Caution

Use only non-shunted lamp-holders. Do not install product in a fixture with shunted lamp-holders (found in all fixtures using instant start ballasts). If the current lamp-holders are shunted, remove them and replace them with non-shunted lamp-holders. Make new connections directly to terminals as indicated above.

Disclaimers

*This product is built to order typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time.  All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. Keystone has multiple warehouse's around the country to help serve you better.


Extra Information

Brand:
Keystone Technologies
UPC:
843654128566
Catalog No:
KT-LED36PSHID-EX39-8CSB-D
Wattage:
Selectable 36W/27W/18W
Color Temperature:
CCT Tunable (3000K/4000K/5000K)
Base:
EX39 (Mogul)
CRI:
80
Dimmable:
No
Life Hours:
50,000 +
Lumens:
Up to 5220 Lumens
Equivalent:
150 Watts
UL Listed:
Yes
Voltage:
120–277V
Warranty:
5 Year
Illuminated Length (in.):
8.70
MOL (in):
3.87
Diameter (in.):
3.30
