Description

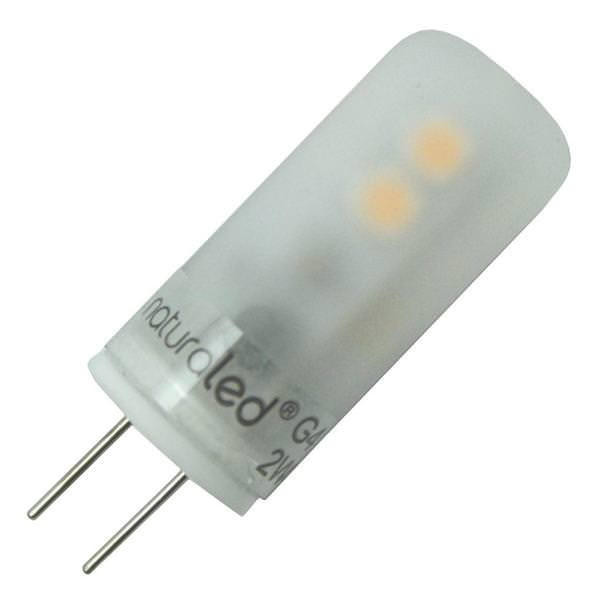

LED2JC/16L/G4/830 Low-Profile G4 Bi-Pin LED Retrofit Lamp | Soft White (3000 K) | Low-Glare Dimmable For Home & Retail
Designed for simple low-voltage upgrades, this compact G4 LED lamp delivers warm, glare-controlled illumination that reduces maintenance and streamlines retrofits in display, accent, and undercabinet lighting while providing dimmable operation for precise ambiance control.
KEY FEATURES:
- Low-Voltage Retrofit: 12V G4 base fits existing bi-pin sockets for fast lamp swaps without rewiring.
- Dimmable Performance: Smooth dimming capability enables customized lighting levels for retail and residential displays.
- Warm, Low-Glare Output: Frosted finish produces comfortable Soft White light suitable for close-view tasks and accenting.
- Long Service Life: 25,000 hour rated life and a 3-year warranty reduce replacement frequency and maintenance costs.
- Compact & Lightweight: Small form factor (0.47" W x 1.42" H) makes it ideal for tight fixture housings.
APPLICATIONS:
- Ideal for undercabinet, display case, and accent lighting in homes and shops.
- Perfect for residential and small retail installations seeking warm, dimmable accent light.
- Well Suited For low-voltage track, showcase, and decorative fixtures.
- Usage Tip: Use compatible low-voltage dimmers rated for LED loads to ensure smooth dimming performance.
SPECIFICATIONS:
- Model Number: LED2JC/16L/G4/830
- Item # / SKU: 4510
- Category: Bi-Pin
- Base Type: G4
- Finish: Frosted
- Color Temperature: 3000K
- Lumens: 330
- Input Voltage: 12 V
- Voltage Frequency: 60 Hz
- Input Current: 0.16 A
- Power Factor: 0.85
- Dimmable: Yes
- Rated Life: 25,000 hours
- Warranty: 3 years
- Weight: 0.0132 lbs
- Dimensions (W x H): 0.47" x 1.42"
- Operating Temperature: -4°F~113°F
CERTIFICATIONS & ADDITIONAL NOTES:
- Qualifications: UL/ETL, Energy Star, DLC, CEC, JA8, FCC, RoHS
