Description

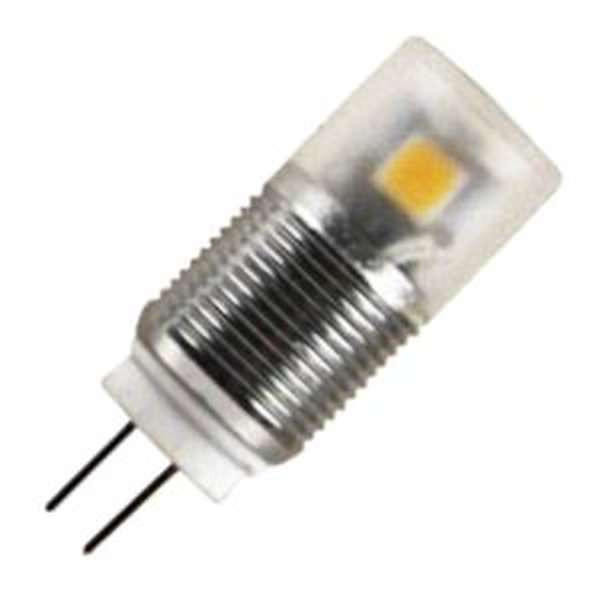

LED2JC/17L/G4/850 Low-Voltage Frosted G4 JC-Style LED Replacement Lamp For Low-Profile 12V Fixtures | Daylight (5000 K) | Energy-Efficient Retrofit
Upgrade low-voltage display and accent lighting with this compact, frosted G4 bi-pin LED lamp that reduces maintenance and energy use while delivering crisp Daylight illumination ideal for retail, hospitality, and residential showcases.
KEY FEATURES:
- Compact Retrofit: Direct G4 bi-pin replacement fits standard 12V fixtures for quick lamp swaps without rewiring.
- Low Energy Use: Rated at 2W with tested low wattage operation to minimize power draw in display circuits.
- Crisp Daylight Output: 5000K frosted finish provides uniform, glare-reduced illumination for products and accents.
- Dimmable: Compatible with listed dimmers for controllable accent lighting and precise ambiance tuning.
- Long Service Life: 25,000 hour rated life and a 3-year warranty lower maintenance and replacement frequency.
APPLICATIONS:
- Ideal for retail display shelves and jewelry cases where color fidelity and low heat are critical.
- Perfect for hospitality accent lighting and cove illumination in hotels and restaurants.
- Well suited for residential undercabinet, task, and showcase lighting requiring low-voltage lamps.
- Usage Tip: Use with compatible Lutron or Leviton 12V LED dimmers listed in the dimmer compatibility notes.
SPECIFICATIONS:
- Model: LED2JC/17L/G4/850
- Item # / Order #: 4511
- Rated Wattage: 2 W
- Tested Wattage: 1.6 W
- Input Voltage: 12 V
- Voltage Frequency: 60 Hz
- Input Current: 0.16 A
- Power Factor: 0.85
- THD: 2
- Replacement Wattage: 20 W
- Lumens: 170 lm
- Efficacy: 100 lm/W
- CRI: 80
- Color Temperature: 5000K
- Beam Angle: 330°
- Rated Life: 25,000 hours
- Dimmable: Yes
- Base Type: G4
- Category / Shape: Bi-Pin, Frosted
- Width: 0.47 in
- Length: 1.42 in
- Weight: 0.0132 lbs
- Warranty: 3 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Qualifications: UL/ETL, Energy Star, DLC, CEC, JA8, FCC, RoHS
- Photometric Files: LM79, LM80, IES File
- Compatibility Notes: Dimmer list includes Lutron and Leviton (see compatibility guidance).
