Description

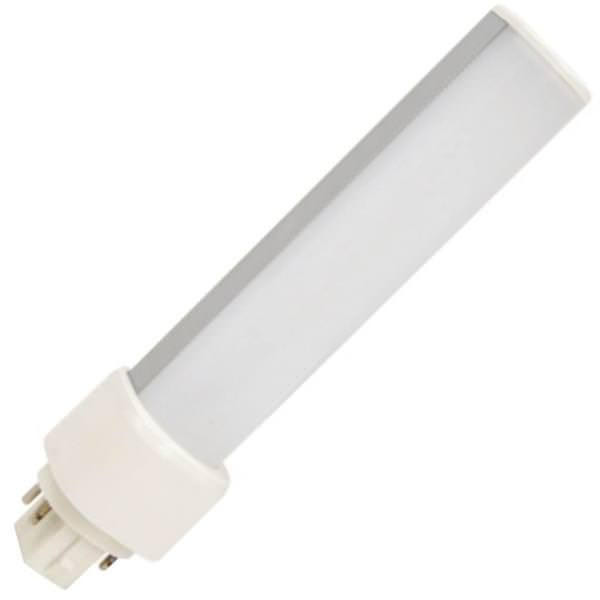

LED12PL/H/100L/4P/840/IF Efficient 12W 4-Pin PL Retrofit Lamp For Commercial Fixtures | Cool White (4000 K) | Instant Fit
Designed to simplify commercial retrofits and reduce maintenance, the LED12PL/H/100L/4P/840/IF instant-fit PL lamp replaces older 26W PL tubes with a compact 12W LED solution delivering 1,100 lumens of Cool White light while fitting existing G24q sockets for fast, tool-free installation.
KEY FEATURES:
- Instant Fit Design: Fits existing G24q 4-pin sockets for quick plug-and-play replacement.
- Energy Savings: 12W LED replaces 26W PL lamps to lower energy use and operating costs.
- High Output: Produces 1,100 lumens for consistent bright illumination.
- Long Life: Rated life of 50,000 hours reduces maintenance and relamping.
- Wide Distribution: 120° beam angle provides broad, even lighting.
APPLICATIONS:
- Office lighting and ceiling troffers.
- Retail shelving and display fixtures.
- Hospitality common areas and corridors.
- Tip: Use with compatible ballasts or follow instant-fit guidelines for direct replacement.
SPECIFICATIONS:
- Wattage: 12W
- Lumens: 1,100
- Efficacy: 83 LPW
- CRI: 82
- Color Temperature: 4000K
- Beam Angle: 120°
- Rated Life: 50,000 hours
- Input Voltage: AC120~277V (Ballast Dependent)
- Voltage Frequency: 50/60 Hz (Ballast Dependent)
- Power Factor: >0.9
- Base Type: G24q
- Replacement Wattage: PL 26W G24q-3
- Warranty: 5 years
- Location Rating: UL Damp Location
- Certifications: UL/ETL, Energy Star, DLC, CEC
