Description

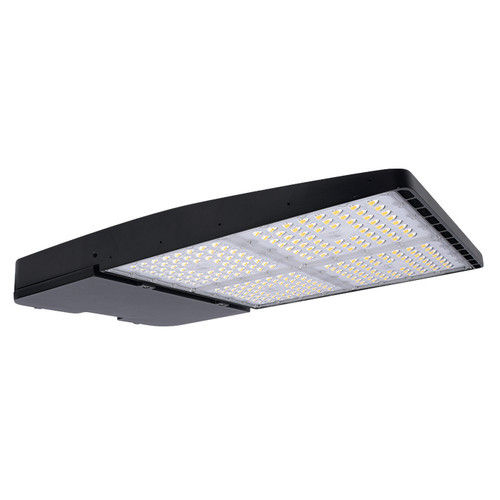

FXSCL400SW/840/BK/TT High-Output Sports Court Luminaire | Cool White 4000K Lighting For Tennis Courts And Walkways
Designed to replace high‑maintenance HID fixtures, the NaturaLED 5202 (FXSCL400SW/840/BK/TT) provides uniform Cool White illumination optimized for tennis courts, sports fields, and outdoor walkways. Selectable wattages and robust outdoor ratings deliver energy and maintenance savings while offering precise tennis‑type beam control for consistent court performance.
KEY FEATURES:
- Selectable Wattages: Choose 240W, 320W or 400W to match site layout and lumen requirements.
- High Output: Up to 60,000 lumens (400W) to replace HID fixtures up to 1500W equivalency.
- Rugged Outdoor Design: Die‑cast aluminum housing with epoxy powder coat finish in Black (RAL#9005) and IP66 rating for wet locations.
- Verified Performance: DLC Premium qualified and ETL/cETL listed for trusted quality and rebate eligibility.
- Tennis‑Type Beam: TT lens option produces the wide, uniform distribution recommended for courts.
- Surge & Controls Ready: 10KV surge protection and 0‑10V dimming with low‑voltage sensor output for integration.
- Durable: IK08 impact rating and operating temperature range of -40°F to 122°F.
- Long Life & Warranty: 50,000 hour rated life with a 5‑year limited warranty.
APPLICATIONS:
- Tennis courts and dedicated court facilities.
- Outdoor sports fields and multi‑use recreational courts.
- Walkways, perimeter lighting, and facility exteriors requiring uniform court‑style illumination.
- Installation Tip: Use the Tennis Type (TT) lens and mount at the recommended 15–25 ft height for optimal court uniformity.
SPECIFICATIONS:
- Wattage: Selectable — 240W / 320W / 400W
- Lumens: 36,000 / 48,000 / 60,000 (for 240W / 320W / 400W)
- Color Temperature: Cool White 4000K
- CRI: >80
- Voltage: 120-277V
- Dimmable: 0-10V
- Surge Protection: 10KV
- Beam Angle / Lens: Tennis Type (TT)
- IP Rating: IP66
- Impact Rating: IK08
- Material: Die Cast Aluminum
- Finish / Color: Epoxy Powder Coat / Black (RAL#9005)
- Dimensions: 26.4 × 16.01 × 2.60 in
- Weight: 22 lbs
- Rated Life: 50,000 hours
- Warranty: 5‑Year Limited Warranty
- Listings: DLC Premium, ETL/cETL Listed
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC Premium Qualified; ETL/cETL Listed.
- Durability: IP66 Wet Location Rating; IK08 impact rating.
- Optional Accessories: Mountings, motion sensors, photocell, pole brackets, lens options, and receptacles (ordered separately).
