Description

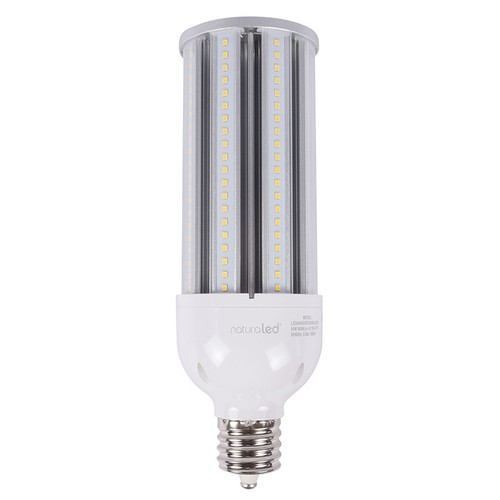

LED75HID/EX39/800L/840 High-Output Retrofit Corn Lamp | Cool White 4000K for Warehouses, Parking, and High-Bay Fixtures
Designed for fast HID-to-LED upgrades in industrial and outdoor environments, this high-output corn lamp provides bright, uniform illumination while reducing maintenance and energy consumption. The integrated bypass driver and universal-position EX39 base make installation straightforward in parking garages, high bays, and post-top fixtures, and the IP65 rating ensures reliable performance in dusty or wet conditions.
KEY FEATURES:
- High Output: Produces 8,153 lumens to replace high-wattage HID sources.
- Rugged, Weather-Ready: IP65 rated housing for dependable outdoor and damp-location use.
- Integrated Driver: Built-in ballast bypass design simplifies retrofit installations.
- Wide Compatibility: EX39 base with universal position for versatile mounting in existing fixtures.
- Long Life & Warranty: Rated for 50,000 hours with a 5-year limited warranty.
APPLICATIONS:
- Ideal for warehouse and high-bay retrofits where high lumen output is required.
- Excellent choice for parking garages, lots, and perimeter lighting upgrades.
- Suitable for post-top and outdoor area fixtures needing weatherproof performance.
- Installation Tip: Bypass existing ballasts per instructions for direct-line EX39 installation to ensure optimal performance.
SPECIFICATIONS:
- Wattage: 75W
- Lumens: 8,153
- Equivalent Wattage: 320W
- Color Temperature: Cool White 4000K
- CRI: 80
- Voltage: 120-277V
- Base Type: EX39
- Beam Angle: 360°
- IP Rating: IP65
- Dimmable: No
- Power Factor: >0.9
- Surge Protection: 6KV
- Operating Temperature: -40°F – 113°F
- Lifespan: 50,000 hours
- Weight: 3 lbs
- Dimensions: 3.74 × 3.74 × 12.05 in
- Mounting Position: Universal Position
- Integrated Ballast: Bypass (LED Retrofit)
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: UL Listed
- Warranty: 5-year limited warranty
