Description

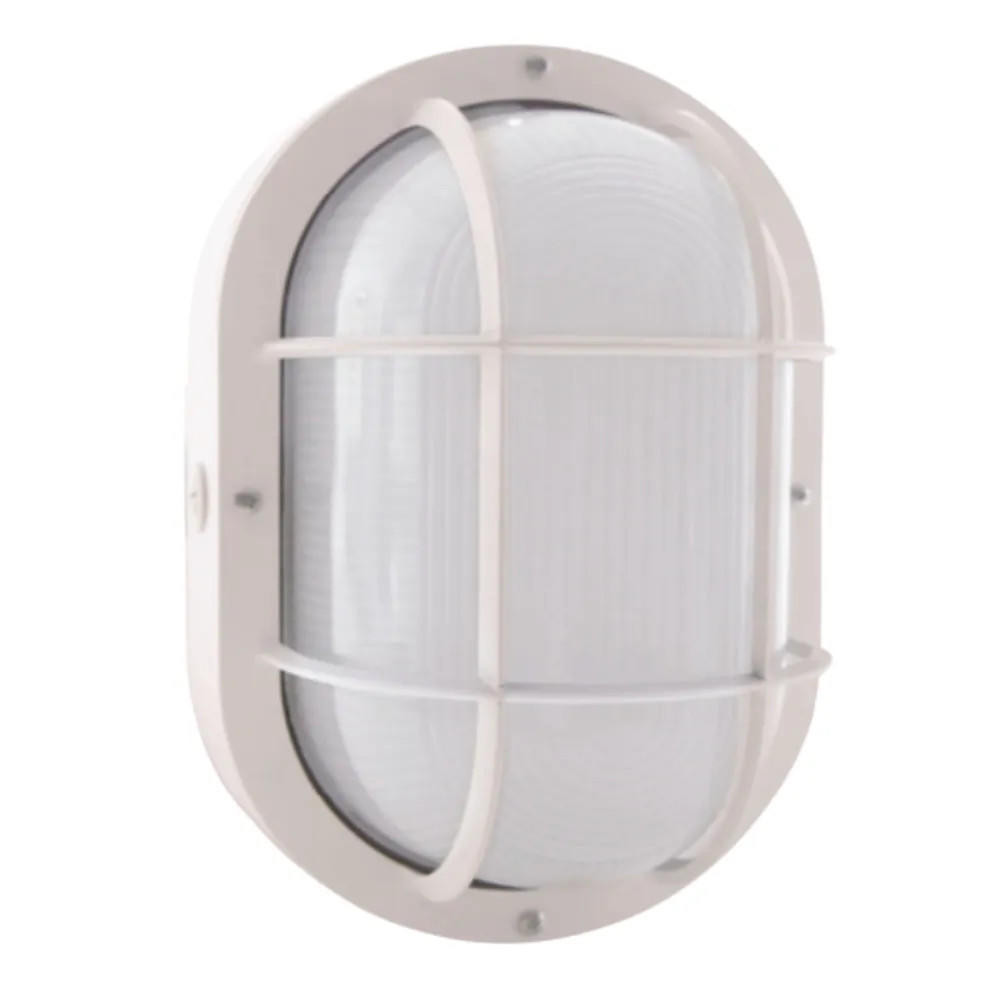

LED-FXBWL10/830/WH Robust LED Bulkhead Wall Fixture For Corridors And Exterior Areas | Soft White (3000 K) | Frosted Glass Lens And Wet-Location Rated
Delivering consistent, low-maintenance illumination for corridors, entryways, and exterior perimeters, this compact bulkhead reduces upkeep and energy use while providing glare-controlled lighting with a durable aluminum housing and frosted glass lens.
KEY FEATURES:
- Durable Construction: White aluminum housing resists corrosion for reliable outdoor service life.
- Glare Control: Frosted glass lens softens light for comfortable, evenly distributed illumination.
- Wide Voltage Range: 100~277V input supports flexible installation across varied electrical systems.
- High Efficacy: Efficient lumen output provides bright lighting while minimizing energy consumption and run costs.
- Wet-Location Ready: UL wet-location rating ensures safe performance in exterior and damp environments.
APPLICATIONS:
- Ideal for building exteriors, walkways, and covered entryways.
- Perfect for corridors, stairwells, and utility areas requiring durable lighting.
- Well suited for parking garage perimeters and service areas exposed to wet conditions.
- Usage Tip: Mount at standard corridor heights for even distribution and reduced glare.
SPECIFICATIONS:
- Category: LED Bulkhead Wall Light
- Item Code: LED-FXBWL10/830/WH
- Stock Code: 7062
- Wattage: 10W
- Lumens: 700
- Efficacy: 70 lm/W
- Color Temperature: 3000K
- CRI: 80
- Voltage: 100~277V
- Frequency: 50/60 Hz
- Input Current: 0.1 A
- Power Factor: >0.9
- Beam Angle: 130°
- Mounting: Wall Mounted
- Housing Color: White (Aluminum)
- Lens: Frosted Glass
- Dimmable: No
- Rated Life: 50,000 hours
- Warranty: 5 years
- Location Rating: UL Wet Location
CERTIFICATIONS & ADDITIONAL NOTES:
- Qualifications: UL/ETL Listed
- Testing: LM79, LM80, IES File Available
