Description

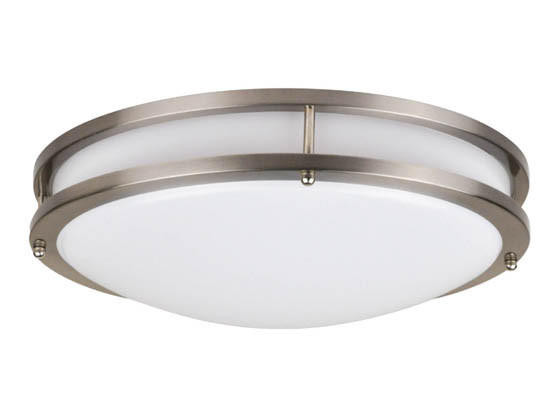

LED14FMM-165L840-NI Low-Profile 14-Inch Flush LED Ceiling Light | Cool White (4000 K) | Dimmable Energy Efficient
Designed for quick, low-profile ceiling upgrades, the LED14FMM-165L840-NI provides consistent Cool White illumination while reducing maintenance and energy costs compared to legacy fixtures. Its slim 14-inch profile and TRIAC dimming compatibility make it an ideal choice for residential and commercial retrofit projects requiring neutral white light and reliable performance.
KEY FEATURES:
- Slim Low-Profile Design: 14-inch diameter with a 2.38-inch height for a clean, modern ceiling appearance in tight plenum spaces.
- Energy Efficient Output: Produces 1,652 lumens at high efficacy (75 lm/W) to lower energy use while maintaining bright illumination.
- TRIAC Dimmable: Works with standard TRIAC dimmers for smooth brightness control and improved occupant comfort.
- Robust Performance: >0.9 power factor and 50,000-hour rated life for long-term, reliable operation and reduced maintenance cycles.
- Durable Finish: Nickel housing provides a neutral aesthetic and durable surface suitable for modern interiors.
APPLICATIONS:
- Ideal for residential living rooms, bedrooms, and hallways seeking a low-profile ceiling fixture.
- Well suited for offices and break rooms that require neutral Cool White illumination and dimming control.
- Appropriate for hospitality common areas and corridors where consistent, low-glare lighting is desired.
- Usage Tip: Best used with compatible TRIAC dimmers for full dimming range and minimal flicker.
SPECIFICATIONS:
- Model Number: LED14FMM-165L840-NI
- Stock Code: 7434
- Wattage: 22W
- Lumens: 1,652 lm
- Efficacy: 75 lm/W
- Color Temperature: 4000K
- CRI: 80
- Beam Angle: 120°
- Input Voltage: 120V
- Voltage Frequency: 60 Hz
- Input Current: 0.18 A
- Power Factor: >0.9
- Dimmable: TRIAC
- Rated Life: 50,000 hours
- Warranty: 5 years
- Housing Color: Nickel
- Width: 14 in
- Height: 2.38 in
- Length: 14 in
- Location Rating: UL Damp Location
- Category: Flush Mount Modern
CERTIFICATIONS & ADDITIONAL NOTES:
- Qualifications: UL/ETL, Energy Star, DLC, CEC, JA8, FCC, RoHS (as listed on spec sheet)
