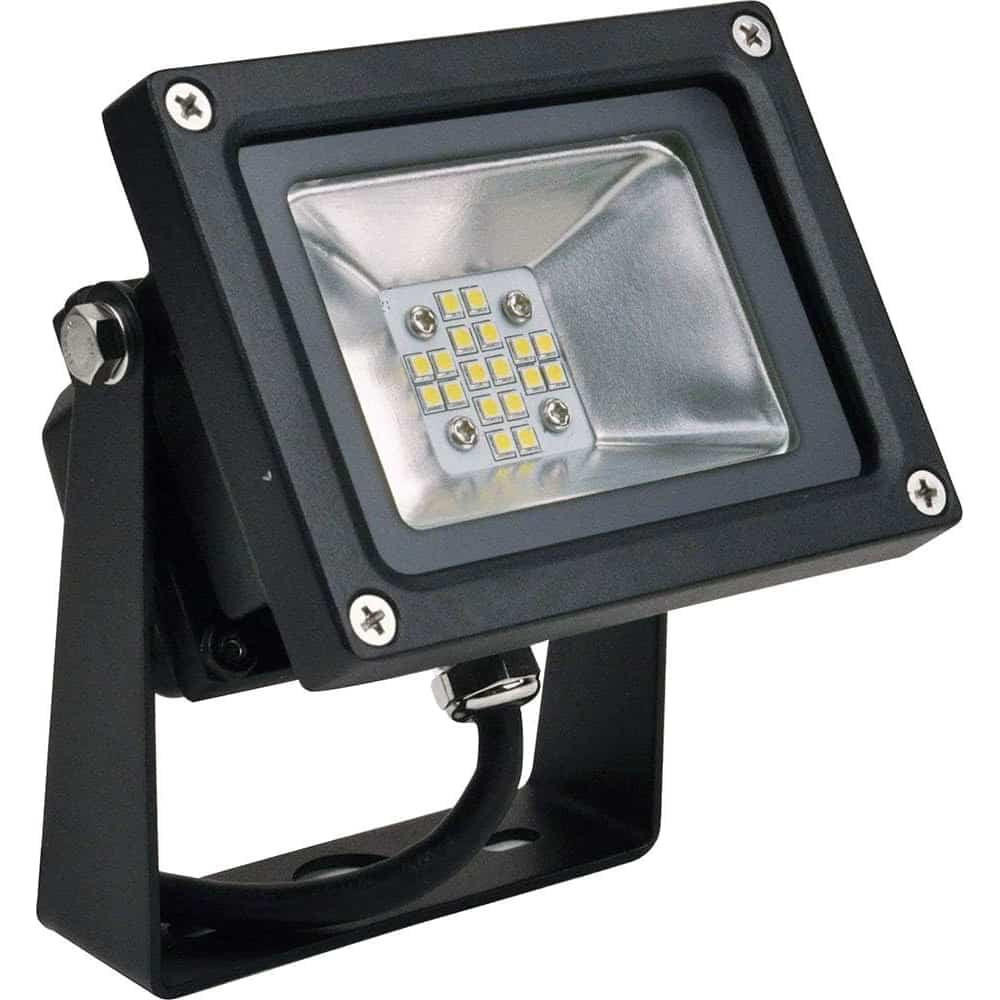

LED-FXFDL13/50K/BK Durable Yoke-Mount Outdoor Floodlight For Security Lighting | Daylight (5000 K) | Energy-Efficient Performance
Deliver bright, maintenance‑reducing illumination for exterior security and accent lighting with this compact yoke‑mount floodlight. Its rugged IP65 housing and high efficacy output make it an ideal replacement for older outdoor fixtures, minimizing service visits while providing consistent Daylight color for improved visibility.
KEY FEATURES:
- Weatherproof Design: IP65-rated housing protects the fixture from dust and rain for reliable outdoor performance.
- High Output: 1,300 lumens at an efficient 100 LPW delivers bright illumination with lower energy use.
- Adjustable Aiming: Yoke‑mount allows precise angling to target security areas or architectural features.
- Wide Voltage Range: Universal 120–277V operation simplifies installation across commercial sites.
- Low Distortion and Stable Power: >0.9 power factor and low THD help ensure clean, reliable operation on modern electrical systems.
APPLICATIONS:
- Ideal for commercial and residential outdoor security lighting and perimeter illumination.
- Well suited for parking lots, loading docks, and exterior building accent lighting.
- Perfect for retrofit projects replacing older halogen or HID flood fixtures with energy-efficient LEDs.
- Usage Tip: Mount at an appropriate height and angle to optimize coverage while minimizing glare for neighbors and drivers.
SPECIFICATIONS:
- Lumen Output: 1,300
- Efficacy: 100 LPW
- CRI: 72
- Color Temperature: 5000K
- Beam Angle: 100°
- Rated Life: 50,000 hours
- IP Rating: IP65
- Dimmable: Yes
- Input Voltage: 120~277V
- Voltage Frequency: 50/60 Hz
- Input Current: 0.114 A
- Power Factor: >0.9
- THD: 13
- Mounting: Yoke Mount
- Housing Color: Black
- Weight: 1.79 lbs
- Dimensions (W x H x L): 3.4" x 3.8" x 4.5"
- Cable Length: 6 ft
- Warranty: 5 years
- Item Code / Model: LED-FXFDL13/50K/BK
- Stock Code: 7514
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety & Listings: UL/ETL
- Qualifications: Energy Star, DLC, CEC, JA8, FCC, RoHS (as listed)
- Testing & Documents: LM79, LM80, IES File
