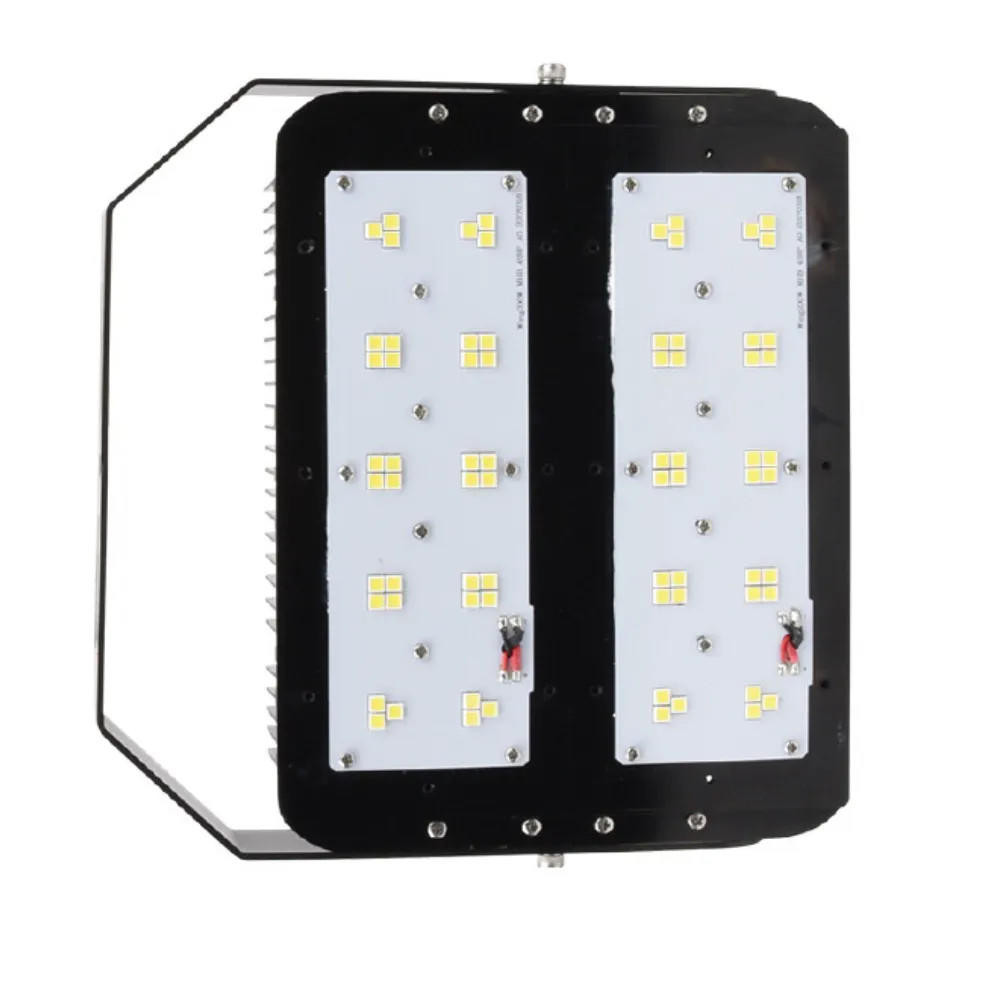

LED-RKIT200HID/40K High-Efficiency 200W HID Retrofit Kit For Commercial Ceilings | Cool White (4000 K) | Low-Glare E39 Yoke
Designed to simplify commercial ceiling upgrades, this retrofit kit enables quick E39 yoke installations to replace 400W HID fixtures with energy-saving LED performance while reducing maintenance and improving uniform Cool White illumination.
KEY FEATURES:
- Easy Retrofit: E39 yoke mounting allows fast replacement of legacy HID lamps with minimal hardware changes.
- High Output: Produces bright illumination (26,000 lumens) suitable for large indoor spaces and high-ceiling areas.
- Energy Efficient: 200W rated power with 130 LPW efficacy reduces energy use versus older HID systems.
- Long Life & Reliability: 50,000 hour rated life with Sosen LED driver and built-in 4KV surge protection for stable operation.
- Flexible Control: 1–10V dimmable driver supports smooth dimming and reduces energy during off-peak hours.
APPLICATIONS:
- Ideal for warehouses and distribution centers looking to cut energy and maintenance costs.
- Well suited for retail big-box ceilings and manufacturing facilities requiring uniform lighting.
- Great for gymnasiums and large indoor arenas needing high-output, glare-controlled illumination.
- Installation Tip: Use the E39 yoke mount to retrofit into existing HID fixtures for fastest field conversion.
SPECIFICATIONS:
- Wattage: 200W
- Tested Wattage: 200W
- Lumens: 26,000
- Efficacy: 130 LPW
- Color Temperature: 4000K
- CRI: 70
- Voltage: 100~277V
- Voltage Frequency: 50/60 Hz
- Beam Angle: 110° / Type 5
- Power Factor: >0.99
- Dimmable: 1~10V
- Surge Protection: 4KV
- LED Driver: Sosen
- Rated Life: 50,000 hours
- Replacement Wattage: 400W
- THD: <20%
- IP Rating: IP20
- Base Type: E39 / Yoke
- Housing Color: Black
- Warranty: 5 years
