Description

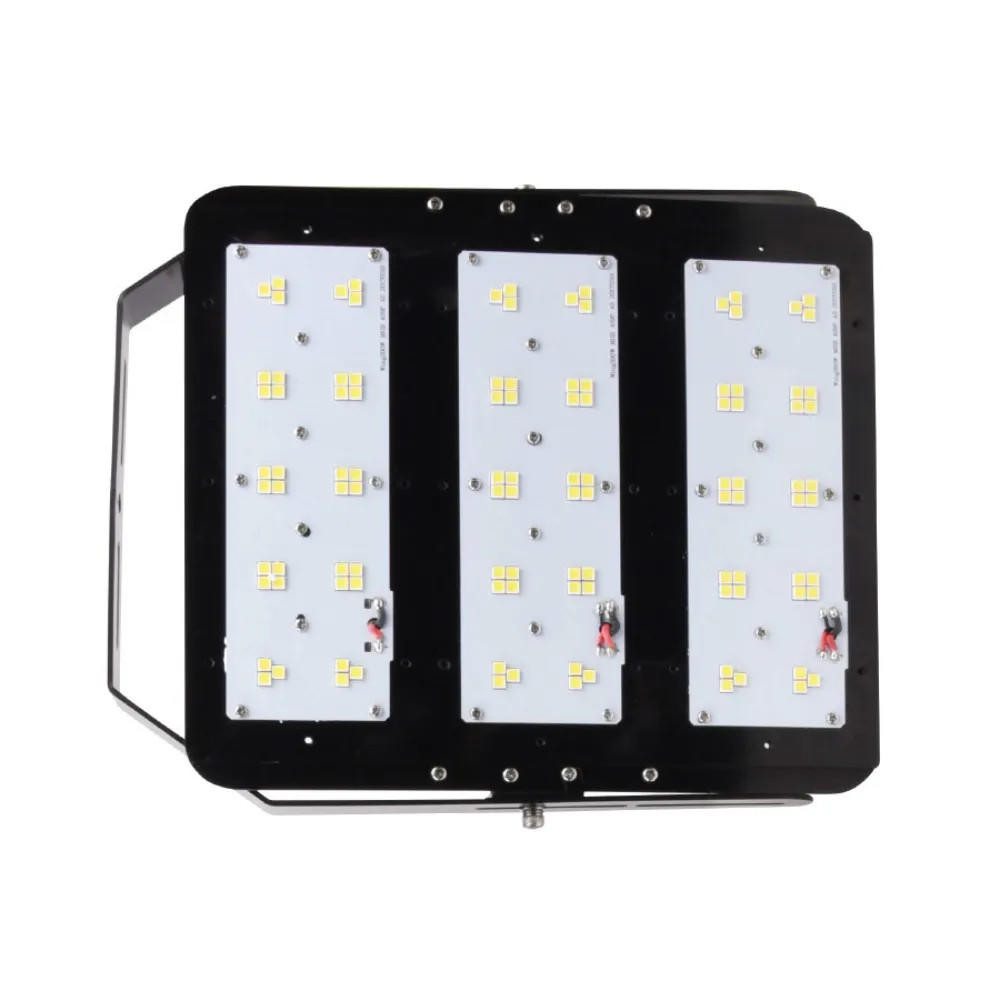

LED-RKIT300HID/40K High-Output Retrofit Solution For Large HID Fixtures | Cool White (4000 K) | Easy E39/Yoke Replacement
Designed to simplify conversions from HID to efficient LED lighting, this retrofit kit delivers high lumen output with reduced energy use and lower maintenance needs while using the existing E39/Yoke mounting for fast installation.
KEY FEATURES:
- Quick Retrofit: E39/Yoke base allows direct replacement into existing mogul sockets for rapid field upgrades.
- Long Life: 50,000 hrs rated life reduces relamping and maintenance interventions.
- High Output: Produces 39,000 lumens to replace large HID fixtures with comparable brightness.
- Dimming Control: Compatible with 1-10V dimming for flexible light level management and energy savings.
- Reliable Performance: Inventronics LED driver with 4KV surge protection and >0.99 power factor for stable operation.
APPLICATIONS:
- Ideal for parking lots, outdoor canopies, and roadway retrofit projects.
- Well suited for warehouses, distribution centers, and industrial facilities upgrading from HID.
- Commonly used in sports fields, large site lighting, and commercial yard installations.
- Tip: Pair with the suggested motion sensor accessory to maximize energy savings during low demand periods.
SPECIFICATIONS:
- Wattage: 130 W
- Replacement Wattage: 300 W
- Lumens: 39,000 lm
- Input Voltage: 100~277 V
- CRI: 70
- Voltage Frequency: 50/60 Hz
- Color Temperature: 4000K
- Beam Angle: 110° / Type 5
- Power Factor: >0.99
- Dimmable: 1-10V
- LED Driver: Inventronics
- Surge Protection: 4KV
- THD: <20%
- Rated Life: 50,000 hrs
- Warranty: 5 years
- IP Rating: IP20
- Base Type: E39/Yoke
- Color / Finish: Black
- Weight: 3.4 lbs
- Driver Dimensions: 7.36 x 4.13
