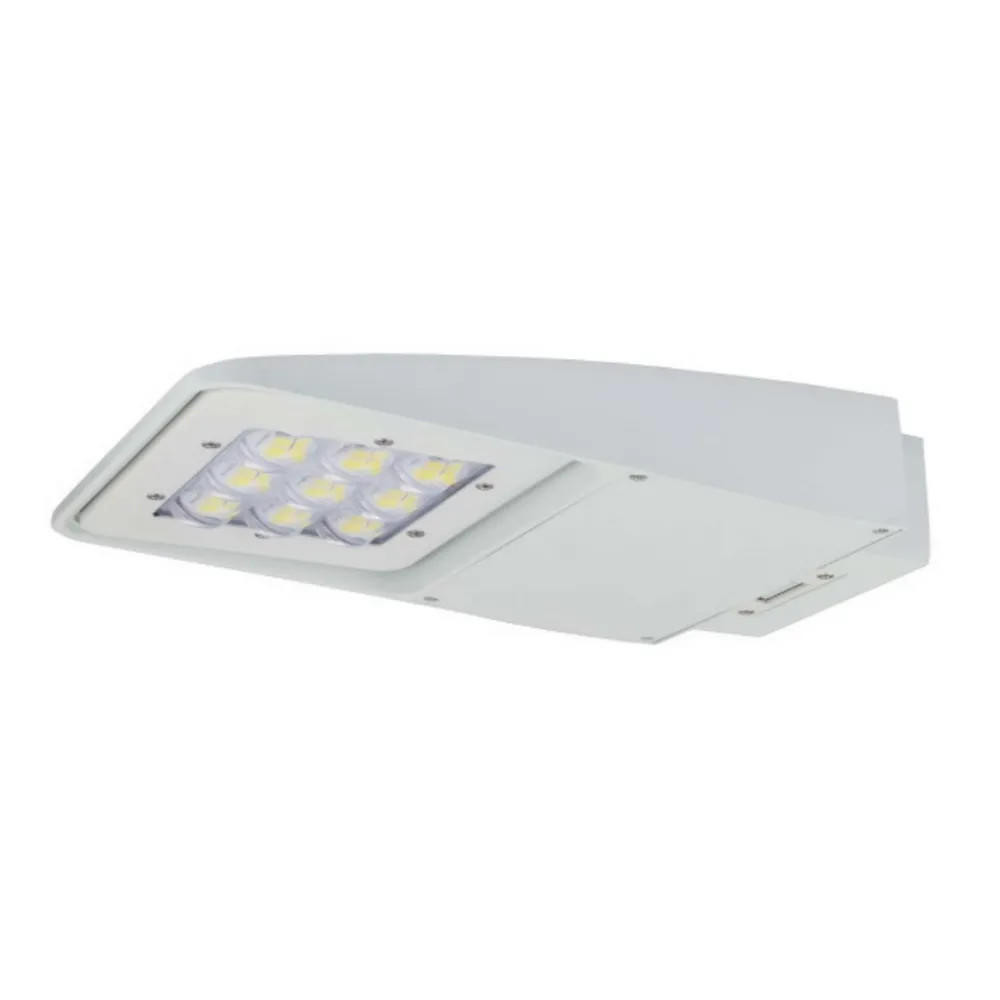

LED-FXSAL50/40K/WH/3S Durable Pole/Arm Outdoor Area Luminaire For Roadway & Parking | Cool White (4000 K) | IP65 Rated
Engineered for reliable outdoor performance, this pole/arm-mounted luminaire delivers consistent Cool White illumination while minimizing maintenance and energy costs for streets, lots, and commercial perimeters.
KEY FEATURES:
- Durable Outdoor Housing: IP65 rated enclosure protects against dust and water ingress for long life in harsh environments.
- High Efficacy Output: Produces listed lumens with efficient delivery to reduce energy consumption versus legacy HID fixtures.
- Integrated Surge Protection: Built-in 12KV surge protection improves reliability in areas prone to electrical transients.
- Field-Friendly Dimming: Supports 1-10V dimming for adaptive lighting control and energy savings.
- Low-Temperature Performance: Rated to operate from -40°F to 140°F for broad climate suitability.
APPLICATIONS:
- Ideal for roadway and municipal street lighting.
- Well suited for parking lots and commercial property perimeters.
- Appropriate for campus and industrial site area illumination.
- Tip: Pair with photocell or motion-sensor accessories for dusk-to-dawn automated control.
SPECIFICATIONS:
- Wattage: 50W
- Tested Wattage: 49.62W
- Lumens: 6241
- Efficacy: 126 LPW
- CRI: >70
- Color Temperature: 4000K
- Beam Angle: Type 3
- Input Voltage: 100~277V
- Voltage Frequency: 50/60 Hz
- Input Current: 0.45 A
- Power Factor: >0.9
- Surge Protection: 12KV
- Dimmable: 1-10V
- Replacement Wattage: 250W
- Warranty: 5 years
- IP Rating: IP65
- Rated Life: 50000 hrs
- Weight: 5.95 lbs
- Height: 2.59 in
- Length: 13.38 in
- Operating Temperature: -40°F~140°F
- Storage Temperature: -40°F~140°F
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: ETL, LM79, LM80, IES File, NEMA, Energy Star, DLC, CEC, JA8, FCC, RoHS
