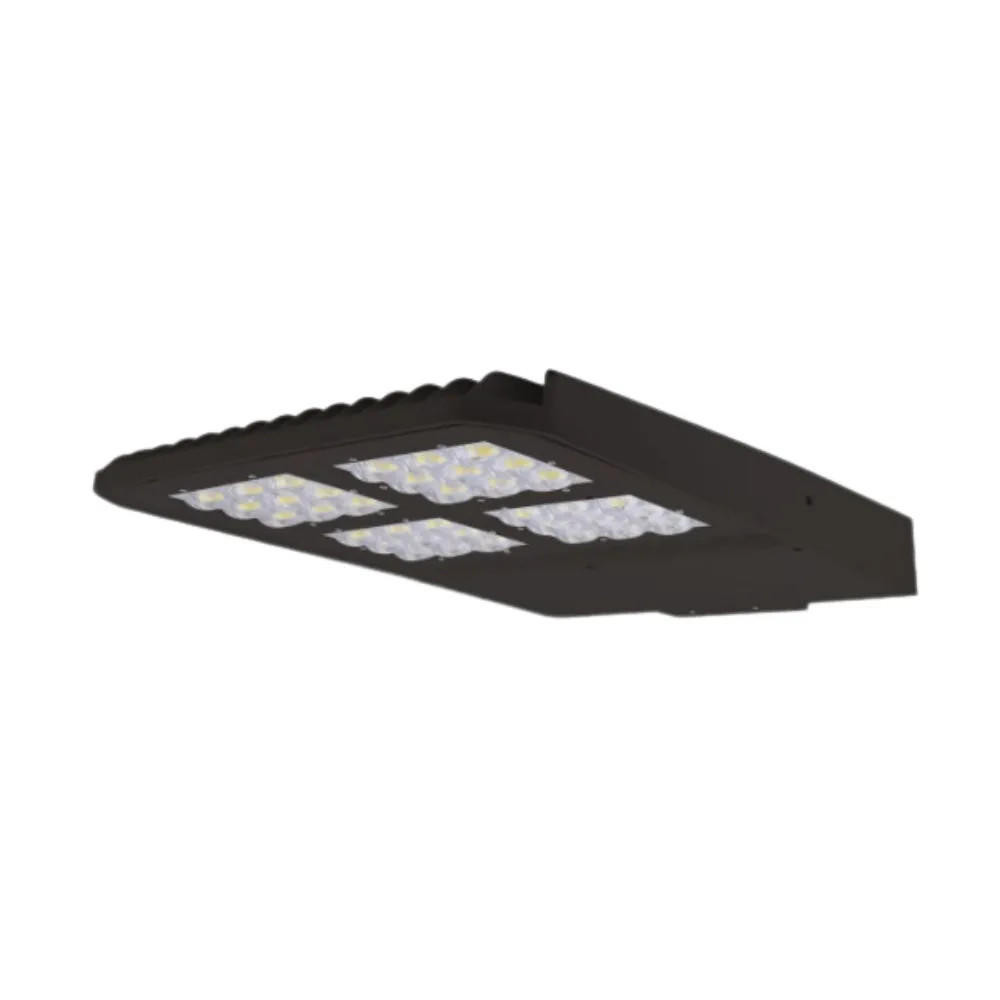

LED-FXSAL360/40K/DB/3S Commercial Pole/Arm Area Luminaire For Roadways And Lots | Cool White | Type 3 Photometric
Engineered for fast upgrades of exterior lighting, this pole/arm-mounted luminaire delivers high-output cool white illumination with robust IP65 protection to reduce maintenance and extend service life in commercial and municipal installations.
KEY FEATURES:
- Durable Outdoor Construction: IP65-rated housing and dark bronze finish for long-term outdoor use in harsh environments.
- High Output: Extremely bright lumen package suitable for large-area illumination and roadway applications (high lumen value listed on spec).
- Integrated Surge Protection: 12KV surge protection helps safeguard fixture electronics against transient events.
- Flexible Control: 1-10V dimming capability enables smooth dimming and compatibility with common control systems.
- Wide Operating Range: Rated for operation from -40°F to 140°F for reliable performance in extreme climates.
APPLICATIONS:
- Ideal for roadway and street lighting, providing consistent corridor illumination.
- Well suited for parking lots and commercial site lighting to improve visibility and safety.
- Effective for industrial yards and campus perimeters requiring durable, high-output fixtures.
- Usage Tip: Pair with a photocell accessory for dusk-to-dawn automation and energy savings.
SPECIFICATIONS:
- Wattage: 122W
- Lumens: 44,796 lm
- Efficacy: 366 lm/W
- Color Temperature: 4000K
- CRI: >70
- Beam Angle: Type 3 Photometric Distribution
- Input Voltage: 100~277V
- Voltage Frequency: 50/60 Hz
- Input Current: 3.1 A
- Power Factor: >0.9
- Dimmable: 1-10V
- Surge Protect Level: 12KV
- Operating Temperature: -40°F~140°F
- IP Rating: IP65
- Rated Life: 50,000 hrs
- Warranty: 5 years
- Housing Color: Dark Bronze
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL/ETL Listed
- Compliance: DLC, Energy Star, FCC, RoHS (as indicated on spec sheet)
- Accessories: Photocell and motion sensor options available; compatible with EA6/SB/SF/Yoke mounts.
