Description

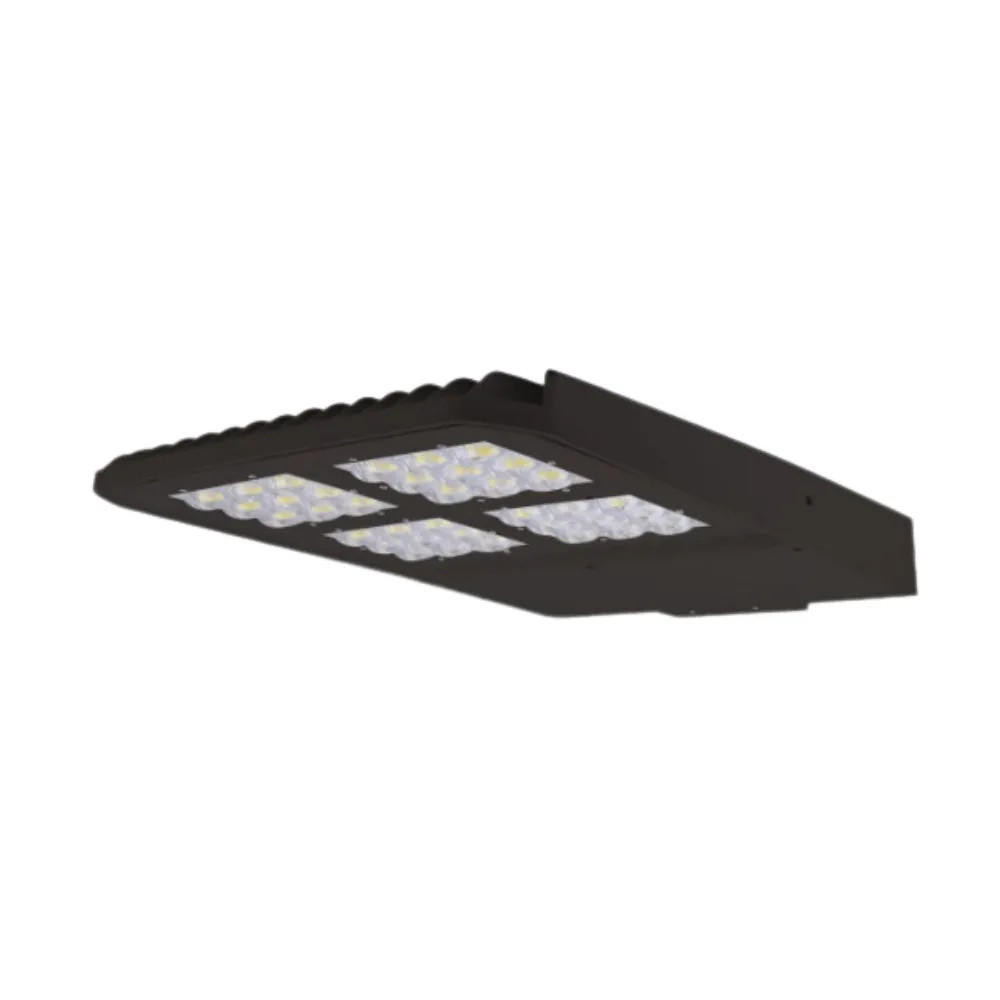

LED-FXSAL360/50K/DB/3S High-Efficiency Pole-Mounted Area And Roadway Luminaire | Daylight | IP65 Outdoor Performance
Engineered for reliable, low-maintenance roadway and area lighting, this pole-mounted luminaire delivers high lumen output and durable, weatherproof performance to reduce service visits and energy costs across municipal and commercial sites.
KEY FEATURES:
- Durable Outdoor Rating: IP65 housing provides protection against dust and water for exposed pole- and arm-mounted installations.
- High Output: Provides 45,878 lumens with an efficacy of 125 lm/W to maximize roadway illumination while improving energy efficiency.
- Wide Voltage Range: Universal 100~277V input and 50/60 Hz operation simplify installations across sites.
- Robust Electricals: Power Factor >0.9, THD <20%, and 12KV surge protection enhance reliability in harsh environments.
- Flexible Control: 1-10V dimming support enables simple integration with lighting controls and energy management systems.
APPLICATIONS:
- Ideal for municipal streetscapes and roadways requiring consistent, high-output illumination.
- Well suited for parking areas, campuses, and commercial perimeter lighting.
- Effective for industrial yards and pathway lighting where weatherproof performance is required.
- Usage Tip: Pair with pole-mounted photocell or motion sensor accessories for optimized energy savings.
SPECIFICATIONS:
- Model Number: LED-FXSAL360/50K/DB/3S
- Wattage (Rated): 360W
- Tested Wattage: 367.7W
- Lumen Output: 45,878 lm
- Efficacy: 125 lm/W
- Color Temperature: 5000K (Daylight)
- CRI: >70
- Beam Pattern: Type 3
- Input Voltage: 100~277V
- Frequency: 50/60 Hz
- Input Current: 3.1 A
- Power Factor: >0.9
- Dimming: 1-10V
- Surge Protection: 12KV
- THD: <20%
- IP Rating: IP65
- Rated Life: 50,000 hrs
- Warranty: 5 years
- Weight: 24.88 lbs
- Height: 3 in
- Length: 23.2 in
- Mounting Height (suggested): 1.97 ft
- Operating Temperature: -40°F~140°F
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: UL/ETL Listed; LM79; LM80; DLC Qualified
- Version: V4.4 Premium
