Description

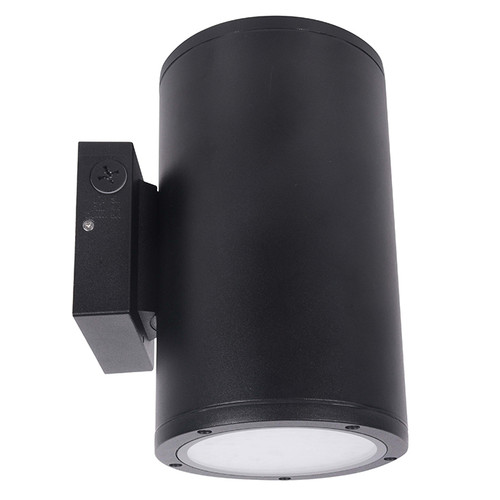

FX6DWS36SW/20/8CCT3/BK/347-PH Durable Outdoor Wall Sconce | CCT Selectable | IP65 Photocell And 0-10V Dimming For Security
Built for reliable perimeter, accent, and security lighting, the NaturaLED 7645 combines field-selectable color temperatures, an integrated photocell for dusk-to-dawn control, and robust outdoor construction to reduce maintenance and energy costs. Its die-cast aluminum body and corrosion-resistant finish deliver long-term performance in harsh environments, while the 0-10V dimming and light distribution switch let installers customize output direction and intensity.
KEY FEATURES:
- Integrated Photocell: Built-in photocell with easy ON/OFF switch for automated dusk-to-dawn operation.
- CCT Selectable: Field-adjustable between 3000K, 4000K, and 5000K for color flexibility on-site.
- High Output: 36W delivering 4,680 lumens for effective perimeter and accent illumination.
- Durable Outdoor Design: Die-cast aluminum housing with corrosion-resistant powder coating and IP65 rating.
- Flexible Control: 0-10V dimming plus Light Distribution Switch to select Up, Down, or Up & Down light distribution.
- Robust Electrical Protection: Wide voltage 120-347V and 4KV surge protection.
- Long Life & Warranty: Rated 50,000 hours with a 5-year warranty.
- Listings: ETL/cETL Listed.
APPLICATIONS:
- Ideal for residential perimeter and entryway lighting.
- Suited for commercial security, building facades, and accent illumination.
- Great for outdoor wall-mounted fixtures at retail or hospitality properties.
- Installation Tip: Use the built-in photocell for automated dusk-to-dawn control and 0-10V dimming for energy savings during off-peak hours.
SPECIFICATIONS:
- Wattage: 36W
- Lumens: 4,680
- Color Temperature: 3000K / 4000K / 5000K (CCT Selectable)
- CRI: >80
- Voltage: 120-347V
- Beam Angle: 20°
- Dimmable: 0-10V
- IP Rating: IP65
- Material: Die Cast Aluminum
- Finish: Corrosion-Resistant Powder Coating
- Photocell: Included (Built-In)
- Surge Protection: 4KV
- Rated Life: 50,000 hours
- Warranty: 5 Year
- Weight: 5.29 lbs
- Dimensions: 8 × 6 × 10 in
- Light Distribution Switch: Up, Down, or Up & Down
- Listings: ETL/cETL
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: ETL/cETL Listed.
- Location Rating: IP65 Rated, suitable for outdoor/wet locations.
- Warranty: 5-year limited warranty.
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. This item ships directly from the factory.
