Description

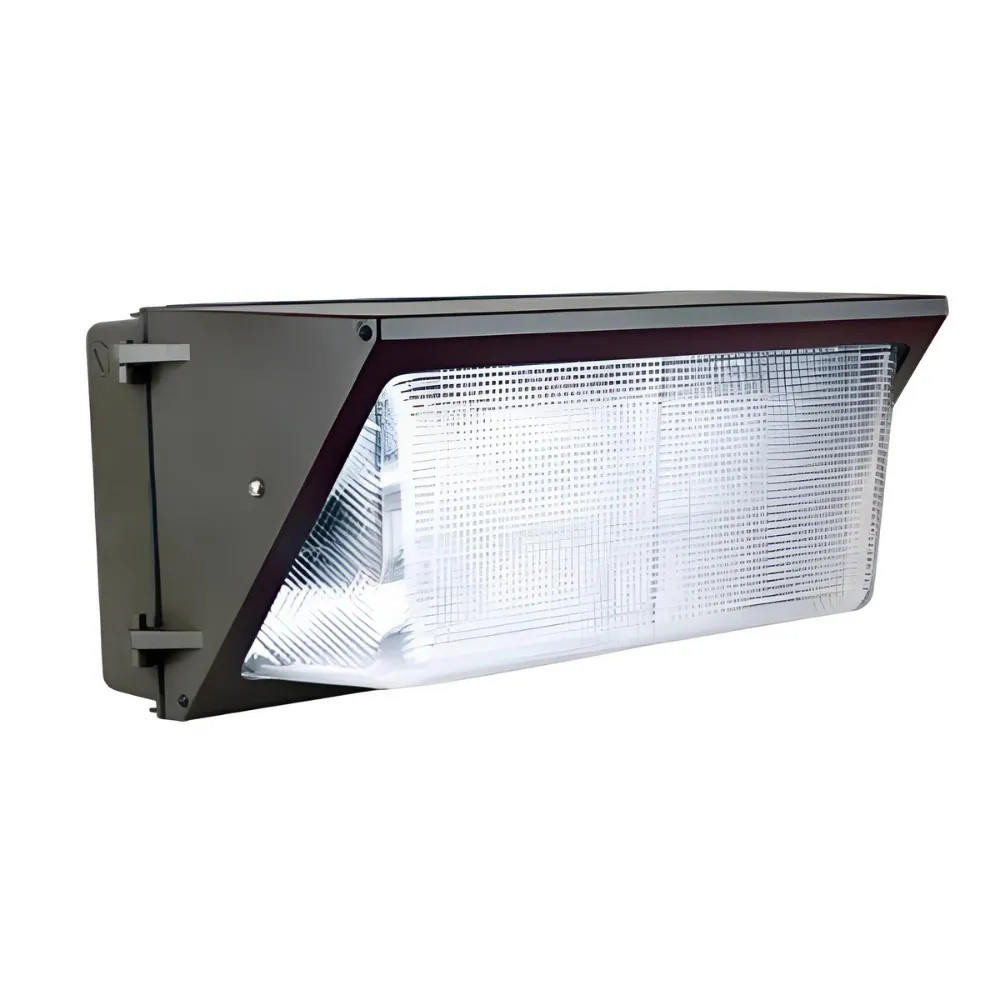

LED-FXTWP59/30K/DB Robust 59W Exterior LED Wall Pack for Commercial Security Lighting | Soft White (3000 K) | IP65 Weatherproof
Upgrade perimeter and building façade lighting with a durable, low-maintenance LED wall pack that delivers consistent soft-white illumination, reduces energy use versus legacy HID fixtures, and minimizes service visits in harsh outdoor environments.
KEY FEATURES:
- Durable Outdoor Design: IP65-rated housing protects against dust and water for reliable exterior performance.
- High Efficacy: Produces 6,195 lumens at 105 LPW for strong illumination with lower energy consumption.
- Wide Input Range: 100~277V compatibility simplifies replacement across varied electrical systems.
- Enhanced Power Quality: >0.99 power factor and <20% THD for stable operation on commercial circuits.
- Field Friendly Controls: 1-10V dimming support enables smooth lumen control and integration with building controls.
APPLICATIONS:
- Ideal for commercial perimeter, loading dock, and storefront security lighting.
- Well suited for parking area walls and pathways requiring consistent task illumination.
- Effective for industrial and municipal building exteriors demanding robust fixtures.
- Installation Tip: Mount at recommended heights to optimize light distribution and minimize glare for pedestrians and drivers.
SPECIFICATIONS:
- Wattage: 59W
- Lumens: 6,195
- Efficacy: 105 LPW
- Color Temperature: 3000K
- CRI: >80
- Input Voltage: 100~277V
- Voltage Frequency: 50/60 Hz
- Input Current: 0.65 A
- Power Factor: >0.99
- Dimmable: 1-10V
- Surge Protection: 2 KV
- THD: <20%
- Warranty: 5 years
- IP Rating: IP65
- Rated Life: 50,000 hrs
- Weight: 9 lbs
- Dimensions (H x W x L): 18.2 in x 9.4 in x 9 in
- Operating Temperature: -22°F ~ 131°F
- Storage Temperature: -22°F ~ 140°F
- Housing Color: DB (Dark Bronze)
- Mounting: Wall Mount
CERTIFICATIONS & ADDITIONAL NOTES:
- Qualifications: UL/ETL, DLC, CEC, JA8, FCC, RoHS
- Photometric Data: LM79, LM80, IES file available
