Description

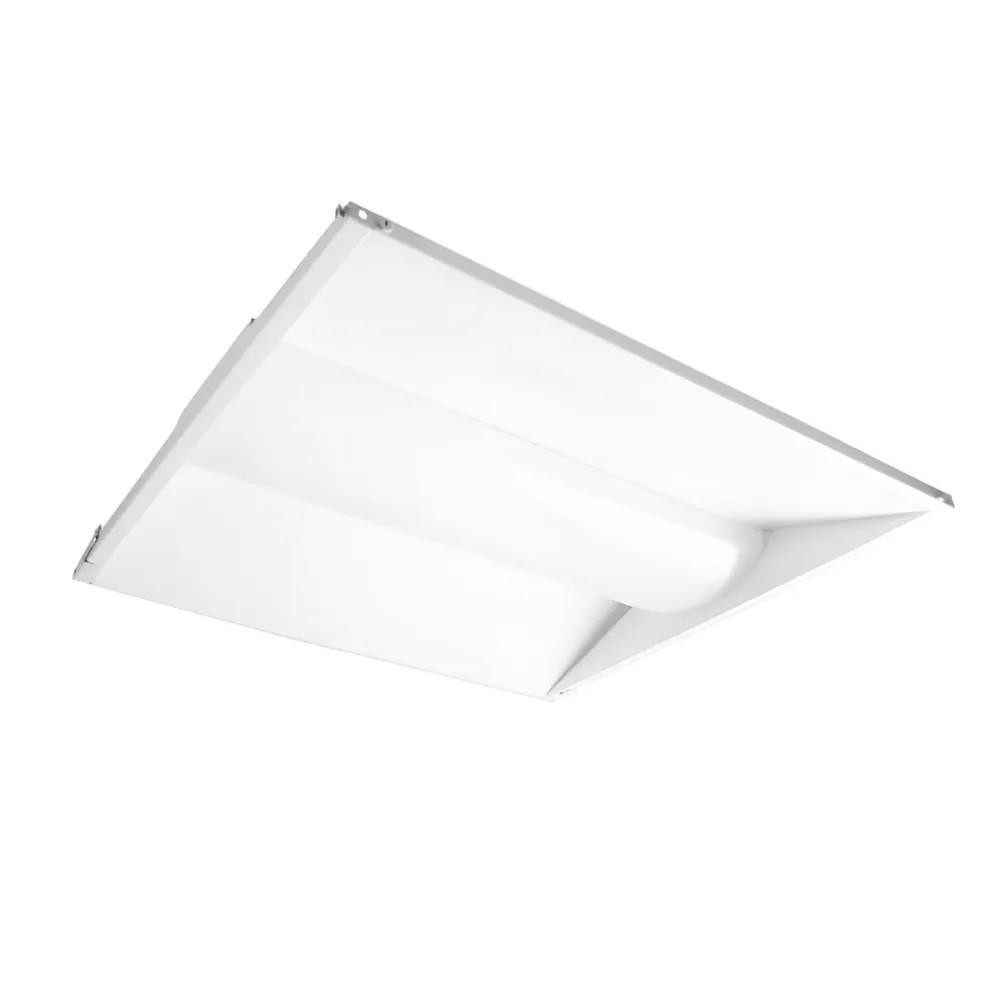

LED-FXTRTF25/2X2/835 High-Efficacy 2x2 Recessed LED Retrofit Troffer | CCT Selectable | Energy-Saving Recessed Upgrade
Reduce installation time and maintenance costs with this compact 2x2 retrofit troffer that delivers consistent, high‑quality light for commercial and institutional ceilings while enabling quick swap‑outs from legacy troffers.
KEY FEATURES:
- Quick Retrofit: Designed for fast recessed installation into existing 2x2 ceiling grids to minimize downtime.
- High Efficacy: Produces strong lumen output with excellent LPW for energy savings over legacy fixtures.
- 0-10V Dimming: Compatible with 0-10V controls for smooth dimming and enhanced occupant comfort.
- Wide Voltage Range: 120–277V input supports flexible installation across common commercial power systems.
- Long Life & Warranty: 50,000 hour rated life and a 5-year limited warranty reduce replacement frequency and service calls.
APPLICATIONS:
- Ideal for office workspaces and conference rooms requiring uniform general illumination.
- Suitable for schools and administrative buildings seeking low‑maintenance lighting solutions.
- Well suited for retail or hospitality back‑of‑house areas where recessed fixtures are preferred.
- Usage Tip: Install with compatible 0-10V controls for best energy savings and occupant comfort.
SPECIFICATIONS:
- Wattage: 68W
- Lumens: 3,125
- Efficacy: 125 LPW
- Color Temperature: 3500K
- CRI: 80
- Beam Angle: 120°
- Input Voltage: 120~277V
- Voltage Frequency: 50/60 Hz
- Input Current: 0.21 A
- Power Factor: >0.9
- Dimmable: 0-10V
- Surge Protection: 2.5KV
- Operating Temperature: -4°F~104°F
- Rated Life: 50,000 hours
- Warranty: 5 years
- Width: 23.78 in
- Height: 3.62 in
- Weight: 8.82 lbs
- Mounting: Recessed
- Category: Retrofit Troffer
