Description

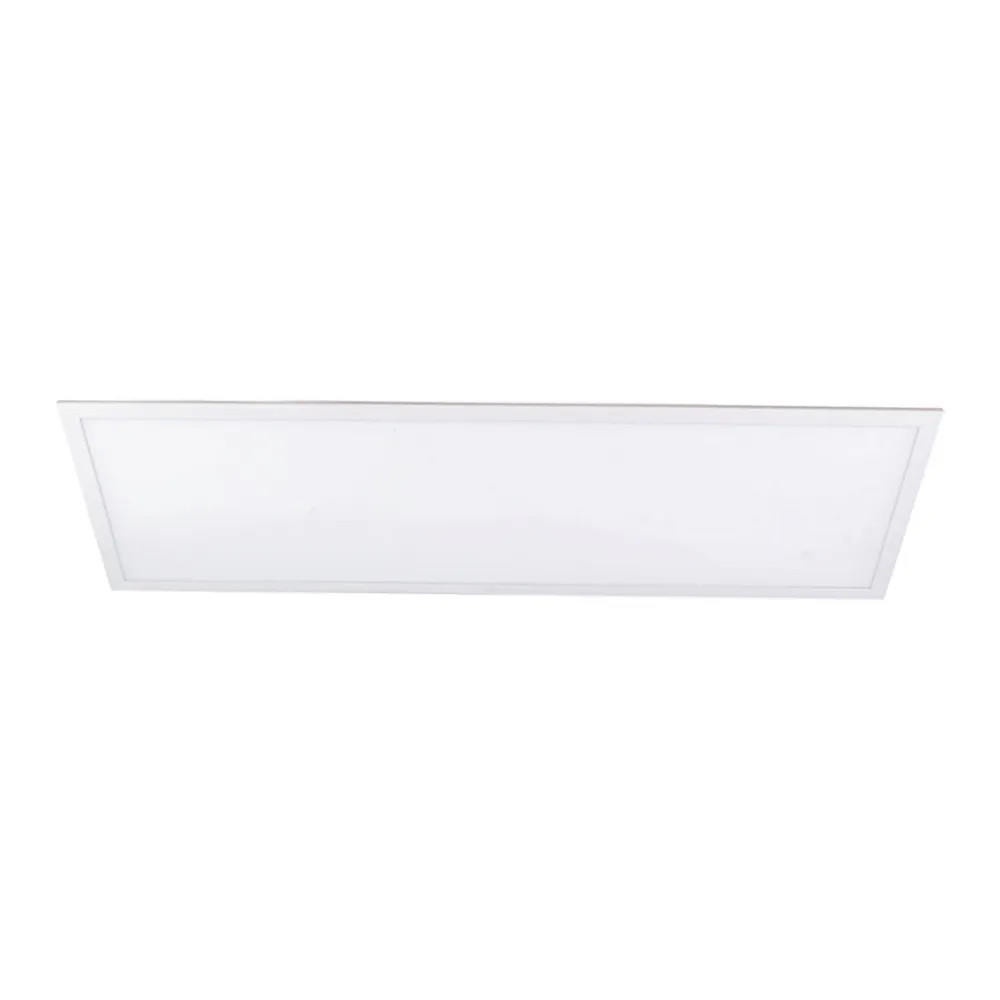

LED-FXPNL26/1X4/840 High-Efficiency 1x4 Recessed LED Panel | Cool White (4000 K) | Low-Profile Dimmable Commercial Fixture
Optimize commercial and institutional ceilings with this low-profile 1x4 recessed LED panel. The PR 9220 delivers consistent Cool White illumination and high efficacy to reduce energy costs while simplifying upgrades with universal 120~277V input and 1-10V dimming compatibility.
KEY FEATURES:
- High Efficacy: Produces 3,250 lumens at 125 LPW for bright illumination with reduced energy use.
- Universal Voltage: 120~277V operation simplifies installation across varied building systems.
- Smooth Dimming: 1-10V dimming support enables straightforward integration with existing controls.
- Long Life: Rated life of 50,000 hours lowers maintenance and replacement frequency.
- Compact Design: Slim recessed profile provides low-glare distribution for modern ceilings.
APPLICATIONS:
- Ideal for office ceilings and open-plan workspaces requiring uniform, low-glare lighting.
- Suitable for retail environments where color consistency and efficacy matter.
- Great for educational facilities and corridors needing durable, long-life fixtures.
- Tip: Use with 1-10V control panels for gradual dimming schedules to maximize energy savings.
SPECIFICATIONS:
- Model Number: LED-FXPNL26/1X4/840
- Item Code / Stock Code: 9220
- Wattage: 26W
- Lumens: 3,250 lm
- Efficacy: 125 LPW
- Color Temperature (CCT): 4000K
- CRI: 80
- Beam Angle: 110°
- Input Voltage: 120~277V
- Frequency: 50/60 Hz
- Input Current: 0.22 A
- Power Factor: >0.9
- THD: ≤20%
- Dimming: 1-10V
- Surge Protect Level: >1000V (L-N)
- IP Rating: IP20
- Rated Life: 50,000 hrs
- Warranty: 5 years
- Weight: 1.69 lbs
- Dimensions (L x W): 47.8 in x 11.8 in
- Mounting: Recessed
- Housing Color: White
- Suggested Accessory: Surface Installation Frame
CERTIFICATIONS & ADDITIONAL NOTES:
- Qualifications: UL/ETL, LM79, LM80, IES File, FDA, NEMA
- Warranty: 5-year limited warranty
