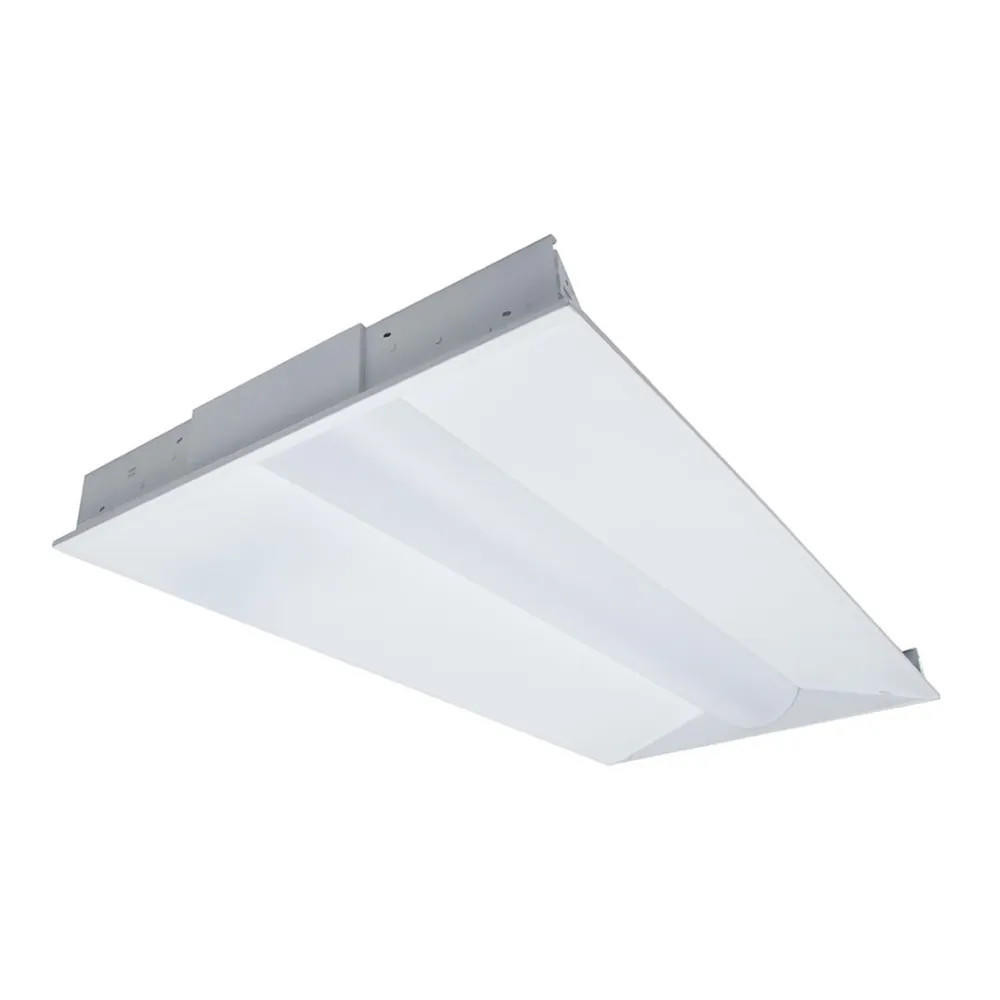

LED-FXTF30/2X4/835G1 High-Efficiency 2x4 Recessed Troffer For Commercial Ceilings | Soft White (3000 K) | Low-Glare, 0-10V
Streamline retrofit projects with a shallow-profile troffer that delivers consistent, glare-controlled illumination while cutting energy and maintenance needs in commercial ceilings.
KEY FEATURES:
- 0-10V Dimming: Smooth, flicker-free dimming compatibility for flexible light levels and energy savings.
- High Efficacy: Delivers 3,810 lumens at 127 LPW for bright output with reduced energy use.
- Low Profile Design: 3.55" housing height fits shallow plenum and tight ceiling spaces.
- Durable & Reliable: 50,000-hour rated life with a 5-year warranty for lower maintenance costs.
- Damp Location Ready: UL Damp Location rating and 1KV surge protection for stable performance.
APPLICATIONS:
- Ideal for open-plan offices and administrative areas.
- Well-suited for retail environments and hospitality common areas.
- Appropriate for healthcare corridors, clinics, and support spaces.
- Installation Tip: Mount in standard 2x4 ceiling grids for quick retrofit or new-construction installs.
SPECIFICATIONS:
- Wattage: 30W
- Lumens: 3,810
- Efficacy: 127 LPW
- Color Temperature: 3500K
- CRI: 80
- Beam Angle: 115°
- Input Voltage: 120~277V
- Voltage Frequency: 50/60 Hz
- Input Current: 0.26 A
- Power Factor: >0.9
- THD: <20%
- Surge Protection Level: 1KV
- Dimmable: 0-10V
- Rated Life: 50,000 hours
- Warranty: 5 years
- Category / Mounting: Troffer / Ceiling
- Dimensions (L x W x H): 47.72 x 23.74 x 3.55 in
- Weight: 13.3 lbs
- Location Rating: UL Damp Location
- Item Code: LED-FXTF30/2X4/835G1
- Stock Code: 9238
