Description

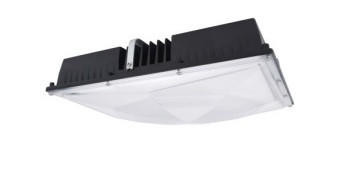

LED-FXSCM85/50K/BK Slim Canopy Fixture For Commercial Canopies And Garages | Daylight (5000 K) | IP65 Wet Location
Engineered for quick upgrades to canopy and garage lighting, this slim canopy fixture delivers high-output Daylight illumination while minimizing maintenance and energy costs for commercial properties.
KEY FEATURES:
- Wet-Location Ready: IP65 rating for dependable outdoor and canopy performance in harsh environments.
- High Output: Produces bright illumination (10,270 lm) to reduce fixture counts and improve visibility.
- Energy Efficient: 122 lm/W efficacy lowers energy use compared to legacy canopy luminaires.
- Dimming Compatible: 1-10V dimming enables smooth light level control and integration with building controls.
- Long Life & Warranty: 50,000 hour rated life backed by a 5-year warranty to cut maintenance needs.
APPLICATIONS:
- Ideal for parking garages and covered parking structures.
- Well-suited for fuel station and exterior canopy lighting.
- Perfect for loading docks and covered walkways requiring durable illumination.
- Tip: Use with 1-10V controls to optimize energy savings and night-time dimming schedules.
SPECIFICATIONS:
- Category: Slim Canopy
- Housing Color: Black
- Weight (lbs.): 8.15
- Dimensions (H x L x W): 4.5 in x 13 in x 13 in
- Warranty: 5 years
- IP Rating: IP65
- Rated Life: 50,000 hrs
- Dimmable: 1-10V
- Surge Protection: 4KV
- Input Voltage: 120~277
- Voltage Frequency: 50/60 Hz
- Input Current: 0.7 A
- Power Factor: >0.9
- Lumens: 10,270 lm
- Efficacy: 122 lm/W
- CRI: 70
- CCT: 5000 K
