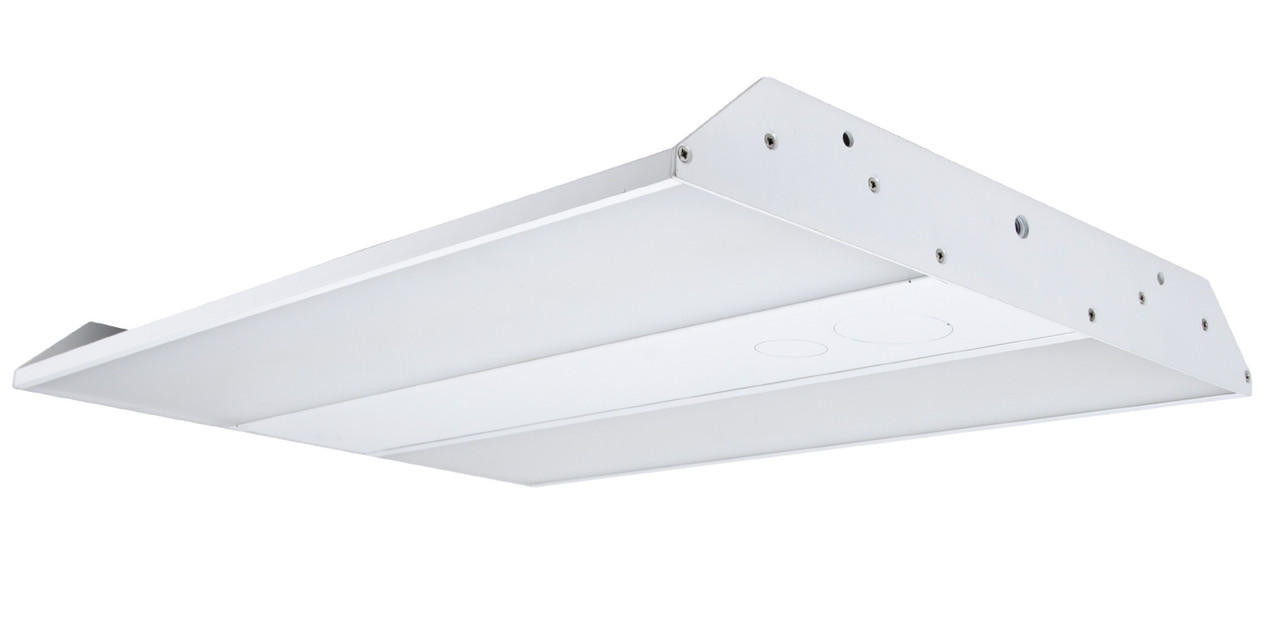

LED-FXHBL210/22FR/840 High-Output Industrial Linear High Bay For Warehouses | Cool White (4000 K) | Chain Mount, 1-10V Dimmable
Specifically engineered for high-bay retrofit and new-install projects, this linear LED high bay delivers powerful, energy-saving illumination that reduces maintenance and lowers operating costs in large indoor spaces.
KEY FEATURES:
- High Output: Produces 27,463 lumens to brightly illuminate expansive warehouse aisles and production floors.
- Energy Efficient: 210W tested at 210.21W with 131 lm/W efficacy to cut energy use versus traditional HID fixtures.
- Wide Compatibility: 100~277V universal input and 50/60Hz operation for flexible electrical integration.
- Controls Ready: 1-10V dimming support enables smooth dimming and simple integration with building controls.
- Durable Service Life: Rated life 50,000 hours with a 5-year warranty for reduced maintenance cycles.
APPLICATIONS:
- Ideal for warehouse aisles, distribution centers, and storage facilities.
- Well suited for manufacturing plants and industrial production areas.
- Effective in gymnasiums, large retail, and commercial high-bay spaces.
- Usage Tip: Use the included chain-mount suspension for secure high-bay placement and optimal light distribution.
SPECIFICATIONS:
- Wattage: 210W
- Tested Wattage: 210.21W
- Input Voltage: 100~277V
- Voltage Frequency: 50/60Hz
- Input Current: 1.8135A
- Lumens: 27,463
- Efficacy: 131 lm/W
- CRI: 80
- Color Temperature: 4000K
- Beam Angle: 100°
- Power Factor: >0.9
- THD: <20%
- Dimmable: 1-10V
- Surge Protect Level: 4KV
- Replacement Wattage: 575-1000W HID
- IP Rating: IP20
- Rated Life: 50,000 hours
- Operating Temperature: -40°F~122°F
- Warranty: 5 years
- Category: Linear High Bay
- Mounting: Chain Mount
- Housing Color: White
CERTIFICATIONS & ADDITIONAL NOTES:
- Qualifications: UL/ETL, Energy Star, DLC, CEC
- Listings: JA8, FCC, RoHS indicated
