Description

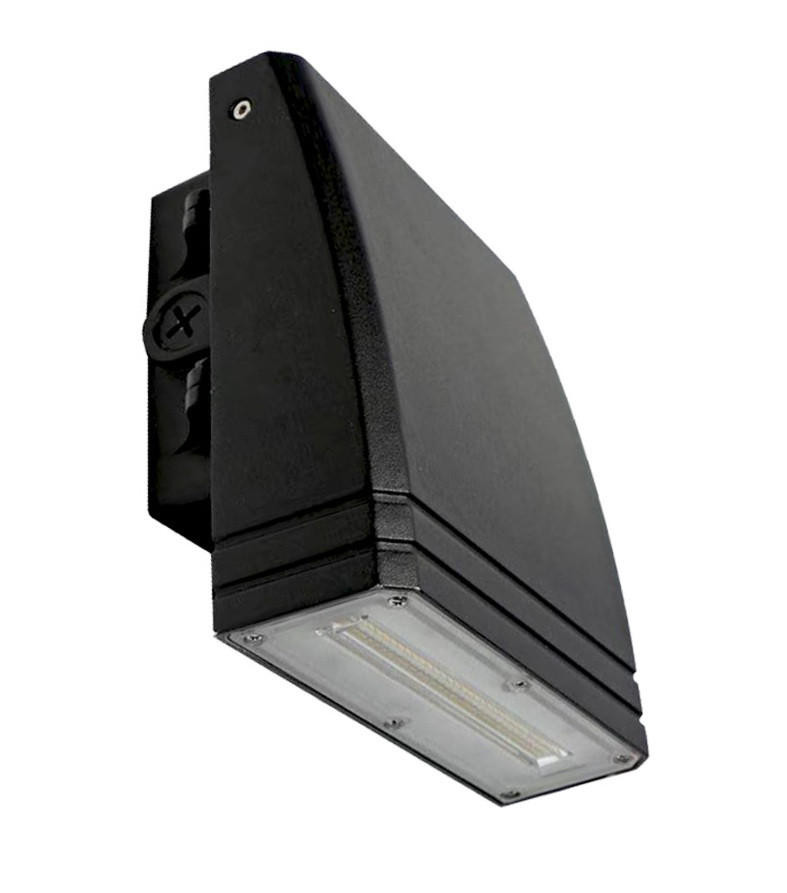

LED-FXSWP15/850/BK Outdoor LED Wall Pack For Security And Pathway Lighting | Daylight (5000 K) | Low-Profile IP65
Designed to simplify exterior lighting upgrades, this low-profile wall pack delivers bright Daylight illumination while cutting energy use and minimizing maintenance for perimeter, pathway, and storefront applications.
KEY FEATURES:
- Wet-Location Ready: IP65 housing protects against rain and moisture for reliable outdoor performance.
- High Efficacy: Produces strong output with excellent lumens-per-watt for reduced energy consumption.
- Wide Coverage: 140° beam angle provides broad, uniform lighting for walkways and building exteriors.
- Universal Voltage: 120–277V input simplifies retrofit and new-install wiring.
- Built-In Protection: 2KV surge protection helps safeguard fixtures from transient events.
APPLICATIONS:
- Commercial building exteriors and entryways.
- Perimeter and pathway illumination for safety and security.
- Retail storefronts and loading areas needing uniform exterior lighting.
- Installation Tip: Place fixtures at recommended mounting heights to maximize coverage and minimize glare.
SPECIFICATIONS:
- Wattage: 15W
- Tested Wattage: 15.68W
- Lumens: 2,062
- Efficacy: 132 LPW
- CRI: >80
- Color Temperature: 5000K
- Beam Angle: 140°
- Input Voltage: 120~277V
- Voltage Frequency: 50/60 Hz
- Input Current: 0.15 A
- Power Factor: >0.9
- THD: <20%
- Surge Protection: 2KV
- IP Rating: IP65
- Rated Life: 50,000 hrs
- Warranty: 5 years
- Replacement Wattage: 75W
- Dimmable: No
- Weight: 3.9 lbs
- Height: 8 in
- Width: 6.6 in
CERTIFICATIONS & ADDITIONAL NOTES:
- Qualifications: UL/ETL, LM79, LM80, IES File
- Compliance & Listings: DLC, Energy Star, CEC, JA8, FCC, RoHS
- Comments: Angle Adjustable; 1/2" knockout (4 ways); Meets ADA regulation.
