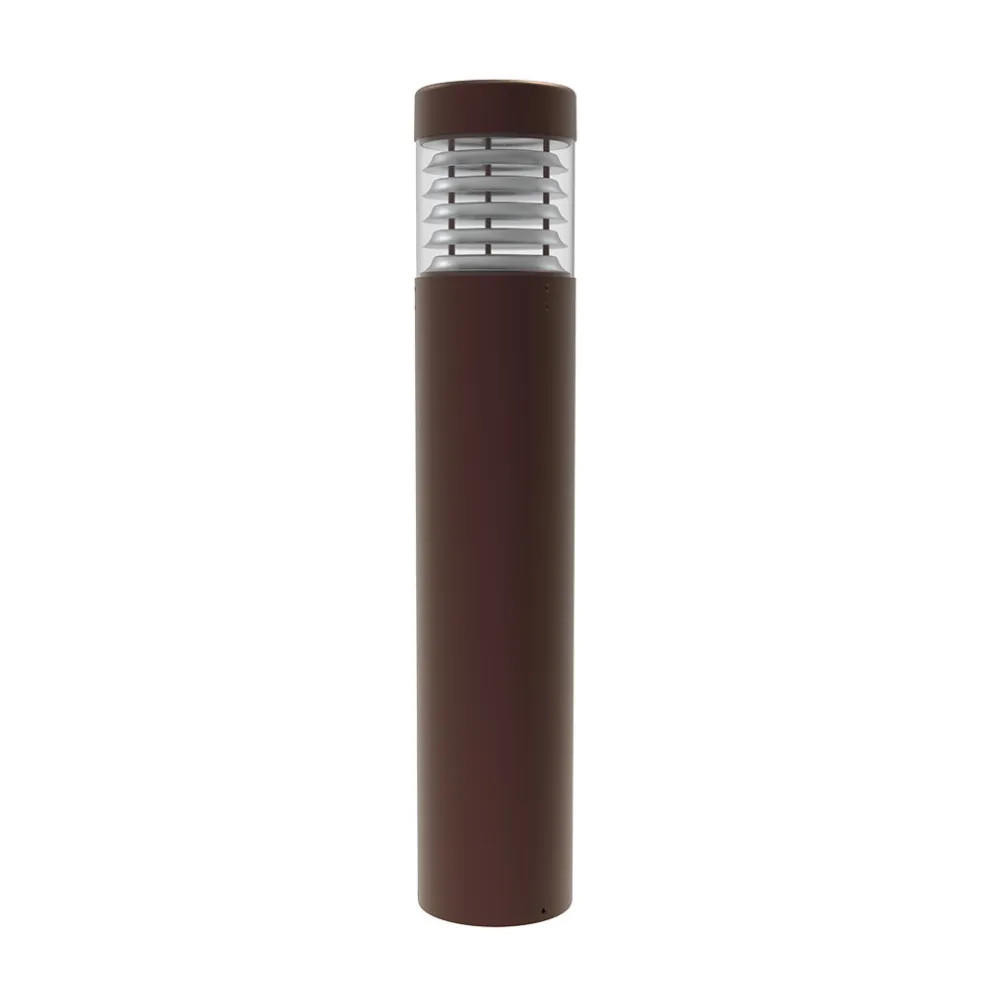

LED-FX8BLD18/42FLV/840/BZ Rugged Louvered Bollard For Pathway And Site Lighting | Cool White (4000 K) | IP65 Outdoor Rated, 18W Efficient
Designed for low‑maintenance exterior illumination, the LED-FX8BLD bollard combines louvered optics and a weatherproof IP65 bronze housing to deliver consistent, glare‑controlled pathway and site lighting while reducing energy and upkeep compared with HID fixtures.
KEY FEATURES:
- Durable Outdoor Construction: IP65 rated housing resists moisture and dust for reliable exterior performance.
- Energy Savings: High efficacy optical system provides bright output at low wattage to cut energy costs versus traditional sources.
- Glare-Controlled Optics: Louvered design minimizes light trespass while maintaining uniform pathway illumination.
- Wide Voltage Range: 120~277V operation simplifies installation across commercial and municipal sites.
- Long Life: 50,000-hour rated life reduces relamping and maintenance cycles.
APPLICATIONS:
- Ideal for pedestrian pathways and campus walkways.
- Well suited to site and perimeter lighting at commercial properties.
- Suitable for residential developments, parks, and plazas.
- Usage Tip: Mount on a 3‑bolt anchor base at recommended spacing to optimize uniformity and minimize glare.
SPECIFICATIONS:
- Category: LED Bollard-Louvers
- Item Code / Model: LED-FX8BLD18/42FLV/840/BZ
- Stock Code / SKU: 9336
- Wattage (Rated): 18 / 13 / 9
- Wattage (Tested): 18
- Lumens: 1566 / 1175 / 783
- Efficacy: 87 LPW
- CRI: >80
- Color Temperature: 4000K
- Beam Angle: 360°
- Input Voltage: 120~277V
- Voltage Frequency: 50/60 Hz
- Input Current: 0.16 A
- Power Factor: >0.9
- Surge Protect Level: 2KV
- Replacement Wattage: 100W (MH) / 200W (Incandescent)
- IP Rating: IP65
- Rated Life: 50,000 hrs
- Dimmable: No
- Housing Color: Bronze
- Mounting: Floor (3 bolt anchor)
- Product Dimensions - Weight: 16.35 lbs
- Product Dimensions - Height: 41 in
- Product Dimensions - Length: 8 in
- Warranty: 5 years
