Description

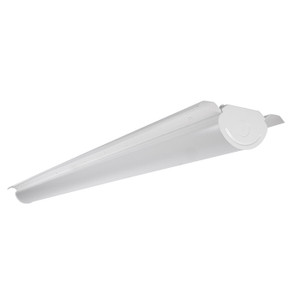

LED-FXRSL25/48FR/840/MV Energy-Saving 48-Inch Retrofit Linear Fixture | Cool White (4000 K) | 1-10V Dimming & 4kV Surge Protection
Specifically designed for fast retrofit projects, this 48-inch LED retrofit strip replaces traditional 2x32W T8 fixtures to deliver bright, consistent Cool White illumination while reducing maintenance and energy costs. Its 1-10V dimming capability and built-in surge protection simplify upgrades and improve reliability in commercial spaces.
KEY FEATURES:
- Simple Retrofit: Direct replacement for 2 x 32W T8 fixtures, minimizing labor and installation time.
- Consistent Light Quality: Produces 3,951 lumens with a CRI >80 for accurate color rendering in workspaces.
- Advanced Controls: 1-10V dimming support enables smooth dimming and energy savings when paired with compatible controls.
- Robust Protection: 4KV surge protection and >0.9 power factor for dependable operation in commercial environments.
- Long Life & Warranty: Rated for 50,000 hours with a 5-year warranty to lower long-term maintenance costs.
APPLICATIONS:
- Ideal for office lighting retrofit runs where uniform, neutral white illumination is required.
- Well suited for retail aisles and shelving areas needing consistent, glare-controlled light.
- Effective in educational and institutional facilities for classrooms and corridors.
- Usage Tip: Pair with 1-10V controls for occupancy-based dimming to maximize energy savings.
SPECIFICATIONS:
- Wattage (Rated): 25W
- Tested Wattage: 25.86W
- Lumens: 3,951 lm
- Efficacy: 153 lm/W
- Color Temperature: 4000K
- CRI: >80
- Beam Angle: 110°
- Input Voltage: 120~277V
- Voltage Frequency: 50/60 Hz
- Input Current: 0.2128 A
- Power Factor: >0.9
- Replacement Wattage: 2 x 32W T8
- Surge Protection: 4KV
- Dimmable: 1-10V
- Warranty: 5 years
- IP Rating: IP20
- Rated Life: 50,000 hrs
- Length: 48 in
- Width: 6.2 in
- Weight: 1.9 lbs
- Operating Temperature: -22°F~122°F
- Storage Temperature: -22°F~158°F
- Model / Item Code: LED-FXRSL25/48FR/840/MV / 9346
- Category: Retrofit Strip Light
- Housing Color: White
- Certifications & Listings: ETL, UL/ETL, LM79, LM80, IES File, FDA, NEMA, Energy Star, DLC, CEC, JA8, FCC, RoHS
