Description

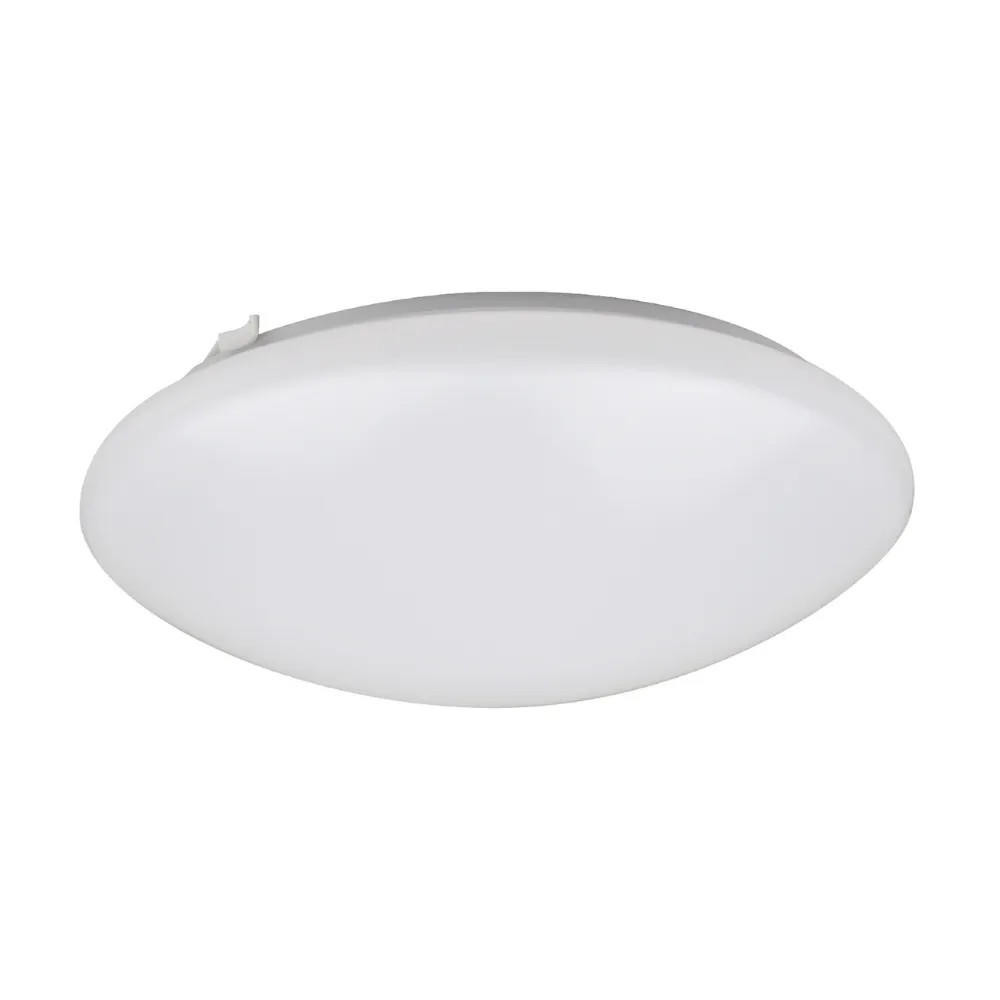

LED12FMR-112L9CCT5 Slim Round Surface Mount LED Fixture | CCT Selectable | Low-Profile Damp Location Ceiling Solution
Designed for fast, low-profile ceiling upgrades, this round flush LED delivers selectable color temperatures to match varied spaces while minimizing maintenance and energy use compared to legacy fixtures.
KEY FEATURES:
- Selectable CCT: Switch between 2700/3000/3500/4000/5000K to tune ambiance without changing fixtures.
- Energy Efficient: 14W rated design reduces energy consumption while delivering useful lumen output.
- Simple Retrofit: Slim surface-mount profile and standard 120V input enable quick installs in existing ceilings.
- Reliable Performance: Robust electrical design with >0.9 power factor, THD ≤20%, and surge protection (DM=1KV, CM=2KV).
- Suitable For Damp Locations: Frosted lens and sealed housing provide dependable performance in damp environments.
APPLICATIONS:
- Ideal for residential ceiling retrofits and hallway lighting.
- Well suited for offices, corridors, and multi-family common areas.
- Appropriate for retail and hospitality areas needing flexible white light options.
- Usage Tip: Use selectable CCT to match adjacent fixtures for consistent visual comfort.
SPECIFICATIONS:
- Model Number: LED12FMR-112L9CCT5
- Item #: 9359
- Rated Wattage: 14W
- Tested Wattage: 14W
- Lumens: 1,120
- Efficacy: 80 lm/W
- Color Temperature: CCT Selectable (2700 / 3000 / 3500 / 4000 / 5000)
- CRI: 90
- Input Voltage: 120V
- Input Current: 0.17 A
- Power Factor: >0.9
- THD: ≤ 20%
- Surge Protect Level: DM=1KV, CM=2KV
- Dimmable: Incandescent Dimming
- Rated Life: 50,000 hours
- Warranty: 5 years
- Dimensions (W×H×D): 11.06" × 3.15" × 11.06" (281mm × 80mm × 281mm)
- Location Rating: Damp location
- Certifications: cETLus, JA8, LM79, LM80, Energy Star, FCC, DLC, RoHS, IES File, NSF/ETL Sanitation, Dimmer List, CEC
