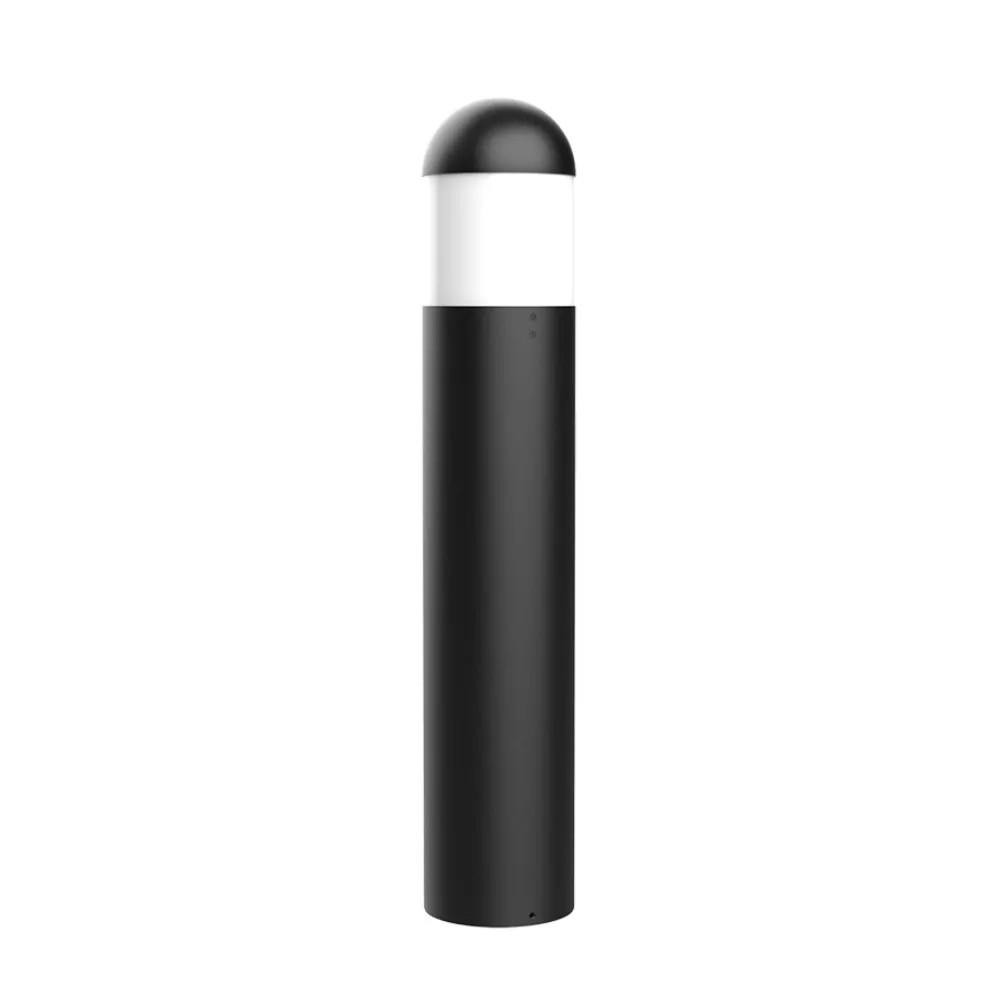

LED-FX8BLD18/42RFR/850/BK Robust Outdoor Bollard With Frosted Lens And Floor Anchor Mount | Daylight | IP65 Weatherproof Pathway Lighting Solution
Designed for low-maintenance pathway and site illumination, this floor-mounted bollard provides consistent daylight output and robust weather protection to reduce relamping and protect site investments.
KEY FEATURES:
- Durable Outdoor Construction: IP65 housing and powder-coated black finish resist moisture and environmental exposure.
- Multiple Output Options: Rated wattages 18 / 13 / 9 allow specification flexibility for varied lumen targets.
- High Efficacy: Up to 90 lm/w (1622 / 1217 / 811 lm) delivers bright pathway illumination with energy savings vs. legacy sources.
- Simple Floor Mount: Designed for floor installation using a 3-bolt anchor for secure, tamper-resistant placement.
- Long Service Life: 50,000-hour rated life and a 5-year warranty lower maintenance and replacement cycles.
APPLICATIONS:
- Ideal for pathway, plaza, and perimeter site lighting in commercial and municipal settings.
- Well suited to parks, campus grounds, and mixed-use developments requiring durable exterior fixtures.
- Excellent for retail centers, hotel landscapes, and pedestrian walkways needing consistent color rendering.
- Usage Tip: Install using the included 3-bolt anchor plate and follow recommended mounting height for even illumination.
SPECIFICATIONS:
- Category: LED Bollard-Frosted Lens
- Item Code: LED-FX8BLD18/42RFR/850/BK
- Stock Code: 9381
- Wattage: 18 / 13 / 9
- Tested Wattage: 18
- Lumens: 1622 / 1217 / 811
- Efficacy: 90 lm/w
- CRI: >80
- Color Temperature: 5000K
- Beam Angle: 360°
- Input Voltage: 120~277V
- Voltage Frequency: 50/60 Hz
- Input Current: 0.16 A
- Power Factor: >0.9
- Replacement Wattage: 100W (MH) / 200W (Incandescent)
- Surge Protect Level: 2KV
- Dimmable: No
- THD: <20%
- Warranty: 5 years
- IP Rating: IP65
- Rated Life: 50,000 hrs
- Weight: 16.1 lbs
- Height: 42.7 in
- Width: 8 in
- Length: 8 in
- Operating Temperature: -22°F ~ 122°F
- Storage Temperature: -40°F ~ 158°F
- Mounting: Floor (3 bolt anchor)
- Housing Color: Black
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: ETL, UL/ETL
- Performance Files: LM79, LM80, IES File
- Other Listings: FDA, NEMA, Energy Star, DLC, CEC, JA8, FCC, RoHS
