Description

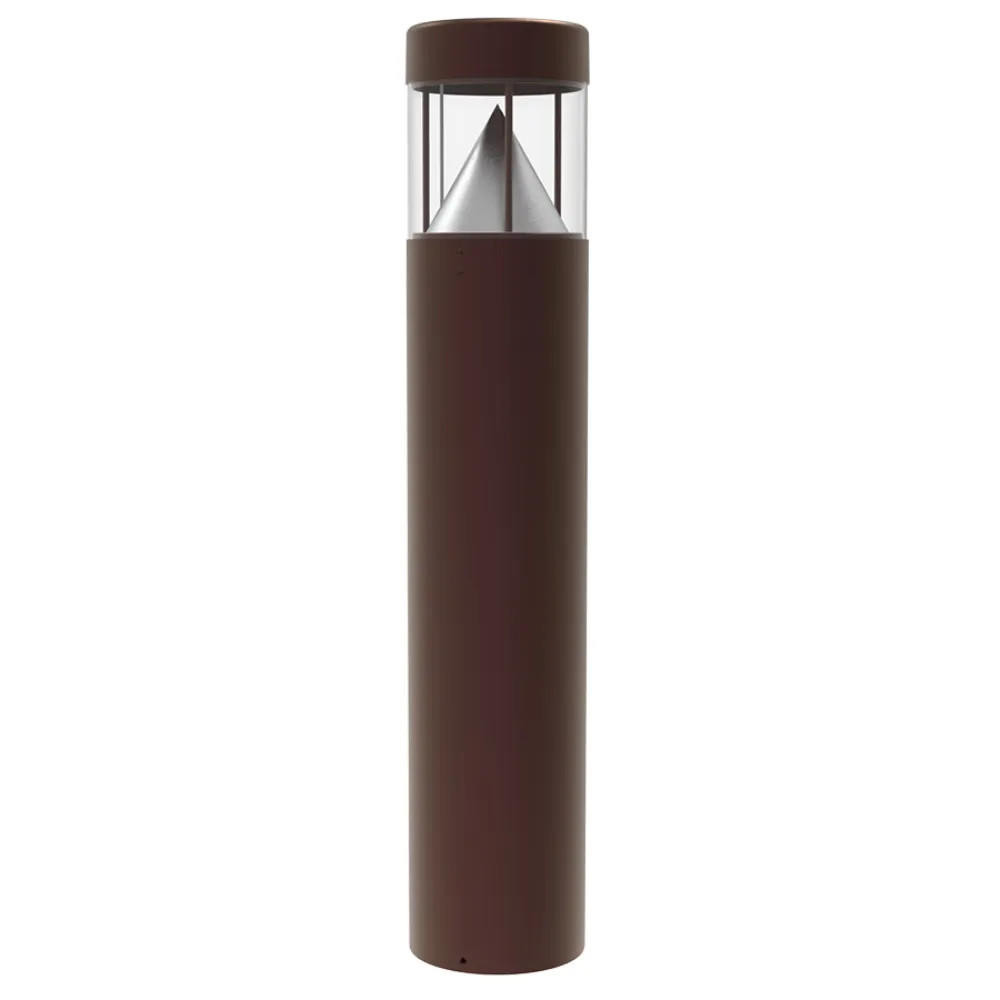

LED-FX8BLD18/42RCN/850/BZ Durable Outdoor Bollard Cone Fixture | Daylight (5000 K) | Weatherproof Site Lighting Solution
Engineered for low-maintenance exterior illumination, this bollard delivers high-output Daylight color and long life while simplifying floor-mount installations for pathways, plazas, and site perimeters.
KEY FEATURES:
- Multiple Output Options: Select from 2079 / 1559 / 1040 lumens to match site lighting needs.
- High Efficiency: Up to 119 lm/W tested efficacy with a tested wattage of 17.54 W.
- Rugged Weatherproof Design: Bronze housing with IP65 rating and 2KV surge protection for reliable outdoor performance.
- Long Life & Warranty: 50,000 hour rated life backed by a 5-year warranty to minimize replacements.
- Easy Floor Mount: Designed for floor mounting with a 3-bolt anchor for secure installation.
- Reliable Electrical Performance: 120~277V operation, PF >0.9, THD <20% and non-dimmable for stable output.
APPLICATIONS:
- Pathways, walkways, and campus grounds.
- Commercial plazas, entryways, and pedestrian zones.
- Residential communities and gated developments.
- Installation Tip: Mount on a stable concrete pad using the included 3-bolt anchor for best stability and alignment.
SPECIFICATIONS:
- Category: LED Bollard-Cone
- Item Code / Model: LED-FX8BLD18/42RCN/850/BZ
- Stock Code: 9383
- Wattage: 18 / 13 / 9 W
- Tested Wattage: 17.54 W
- Lumens: 2079 / 1559 / 1040 lm
- Efficacy: 119 lm/w
- CRI: >80
- Color Temperature: 5000K
- Beam Angle: 360°
- Input Voltage: 120~277 V
- Voltage Frequency: 50/60 Hz
- Input Current: 0.16 A
- Power Factor: >0.9
- Dimmable: No
- Replacement Wattage: 100W (MH) / 200W (Incandescent)
- Surge Protect Level: 2KV
- THD: <20%
- IP Rating: IP65
- Rated Life: 50,000 hrs
- Warranty: 5 years
- Housing Color: Bronze
- Mounting: Floor (3 bolt anchor)
- Weight: 16.1 lbs
- Height: 42.7 in
- Width: 8 in
- Operating Temperature: -22°F~122°F
- Storage Temperature: -40°F~158°F
