Description

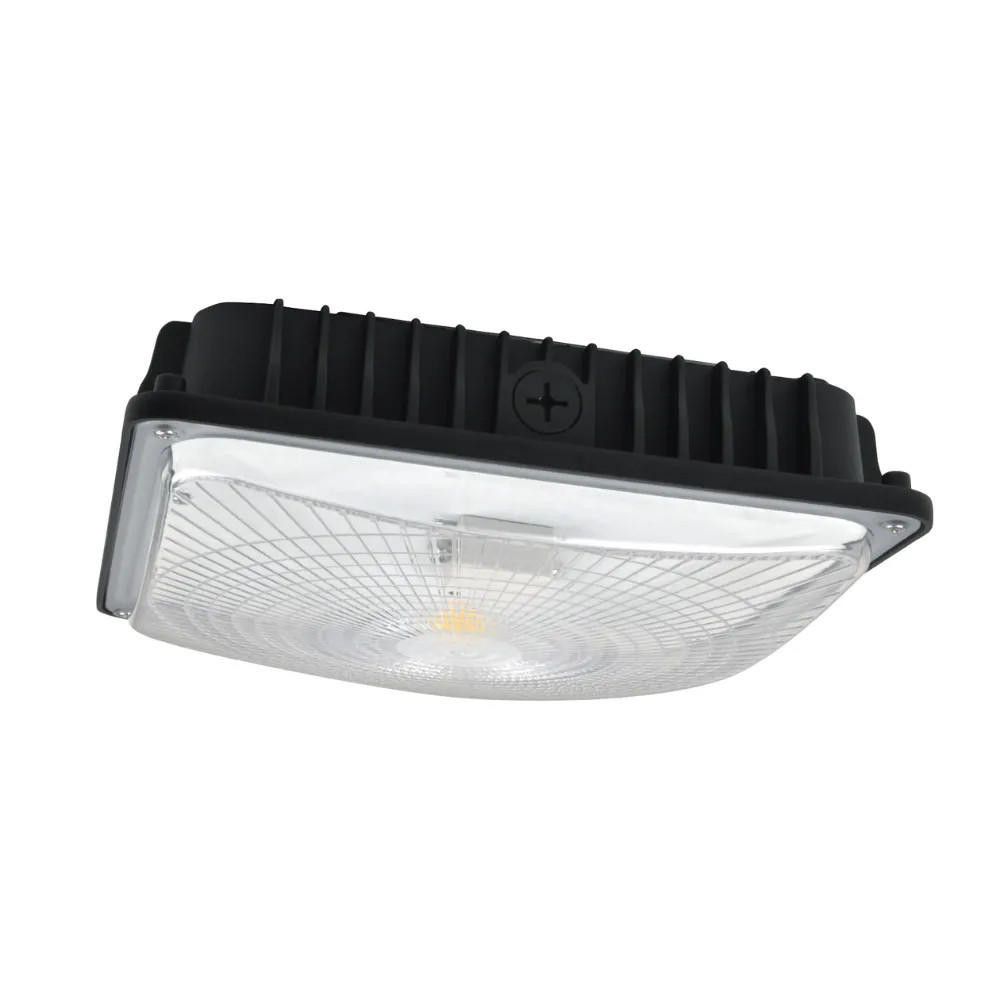

FX10SCM59/850/BK High-Efficacy LED Slim Canopy Fixture For Outdoor Canopy Lighting | Daylight (5000 K) | IP65 Wet-Location Rated
Engineered for fast installation on exterior ceilings and covered canopies, this slim LED canopy provides energy-saving Daylight illumination with high lumen output and durable IP65 protection to cut maintenance and improve site visibility.
KEY FEATURES:
- High Output: Produces 7,694 lumens from a 59W rated fixture for bright canopy coverage.
- Wet-Location Ready: IP65 housing protects against water and dust for outdoor canopy use.
- Universal Voltage: 100~277V operation simplifies wiring and retrofit installation.
- Low Distortion: <20% THD and >0.9 power factor for stable, flicker-free performance.
- Driver & Surge Protection: 1-10 dimming compatibility with 4KV surge protection and optional EM driver availability.
APPLICATIONS:
- Ideal for fuel station canopies and exterior overhangs.
- Well suited to covered walkways, parking canopies, and loading bays.
- Use in retail or service entrances requiring durable, high-output lighting.
- Tip: Install in sheltered canopy positions to maintain IP65 protection and maximize service life.
SPECIFICATIONS:
- Wattage: 59W
- Tested Wattage: 57.4W
- Lumens: 7,694
- Efficacy: 134 lm/W
- Color Temperature: 5000K
- CRI: 80
- Input Voltage: 100~277V
- Voltage Frequency: 50/60 Hz
- Input Current: 0.6 A
- Power Factor: >0.9
- THD: <20%
- Dimmable: 1-10
- Surge Protect Level: 4KV
- IP Rating: IP65
- Rated Life: 50,000 hrs
- Warranty: 5 years
- Operating Temperature: -40°F~122°F
- Storage Temperature: -40°F~140°F
- Weight: 5.1 lbs
- Height: 3.5 in
- Length: 9.48 in
- Width: 9.48 in
- Suggested Accessory: Microwave Sensor; EM driver
CERTIFICATIONS & ADDITIONAL NOTES:
- Qualifications: UL/ETL, LM79, LM80, IES File, FDA, NEMA
- Listings: Energy Star, DLC, CEC, JA8, FCC, RoHS
