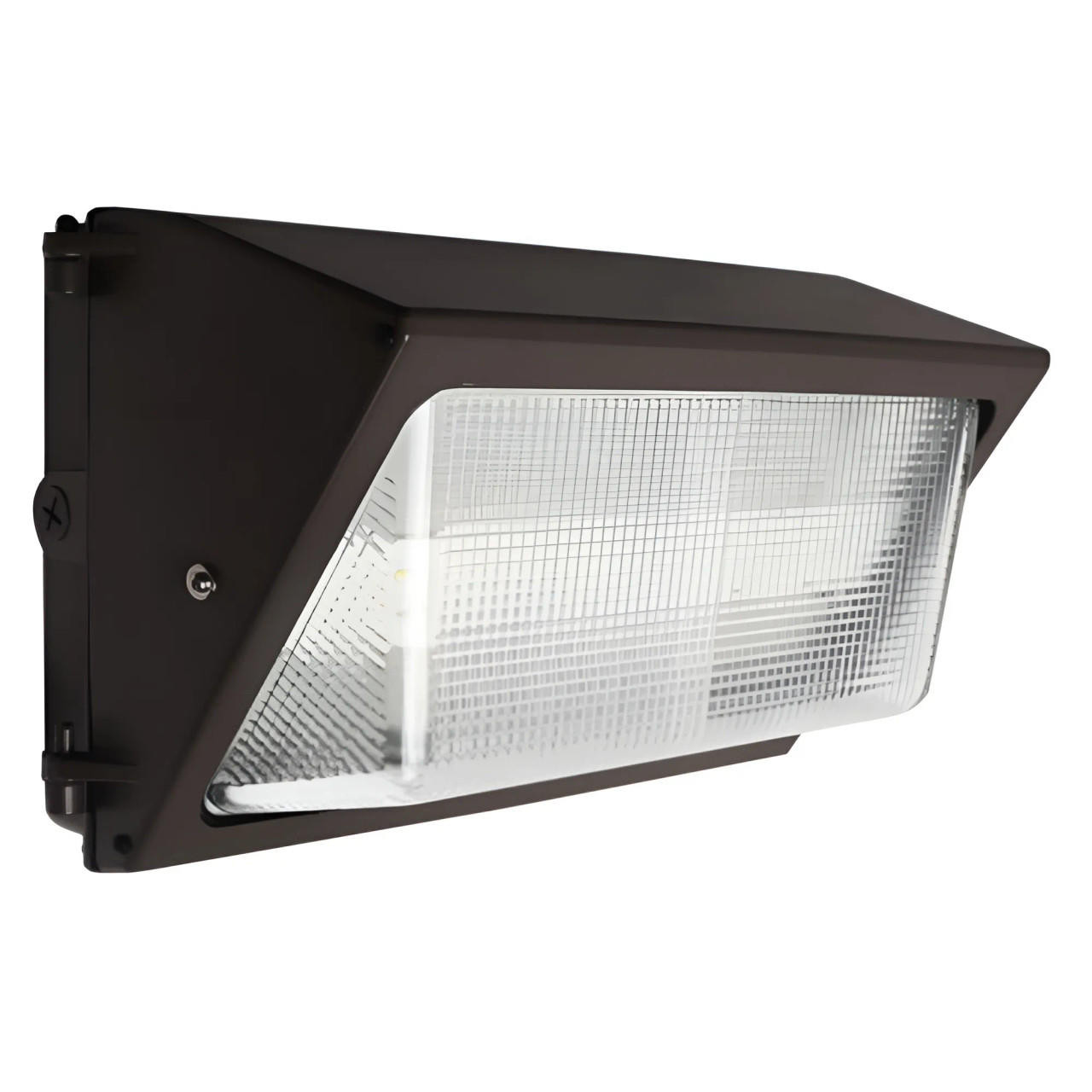

FXTWP38/50K/BZ-PHO Durable Wall-Mount Exterior LED Pack | Daylight (5000 K) | Photocell Included For Security And Low Maintenance
Designed for quick upgrades to building exteriors, this robust wall pack reduces maintenance and delivers consistent Daylight illumination while minimizing downtime through weatherproof construction and integrated controls.
KEY FEATURES:
- Integrated Photocell: Built-in photocell enables automated dusk-to-dawn operation for reliable security lighting.
- Weatherproof Construction: IP65 housing protects against dust and water ingress for outdoor durability.
- High Output: Delivers 5,700 lumens to brightly illuminate building perimeters and walkways.
- Quality Light: 80 CRI and Daylight (5000 K) color provides clear, accurate color rendering for safety and visibility.
- Long Life: 50,000 hour rated life and a 5-year warranty reduce replacement cycles and maintenance costs.
- Wide Voltage Range: 120~277V operation and 0-10V dimming compatibility for flexible installations.
APPLICATIONS:
- Ideal for building exteriors, loading docks, and perimeter security lighting.
- Well-suited for commercial, industrial, and institutional facilities requiring durable outdoor fixtures.
- Effective for pathway and parking area illumination to enhance safety and visibility.
- Tip: Use the integrated photocell to automate on/off scheduling and reduce energy usage.
SPECIFICATIONS:
- Category: LED Wall Pack
- Item Code / Model: FXTWP38/50K/BZ-PHO
- Housing Color: Bronze
- IP Rating: IP65
- Lumens: 5,700 lm
- Efficacy: 150 lm/W
- CRI: 80
- Color Temperature: 5000K
- Input Voltage: 120~277V
- Frequency: 50/60 Hz
- Input Current: 0.32 A (@120V)
- Power Factor: >0.9
- Dimming: 0-10V
- Surge Protection: 4KV
- Rated Life: 50,000 hrs
- Warranty: 5 years
- Photocell: Included with Fixture
- Width: 14.29 in
