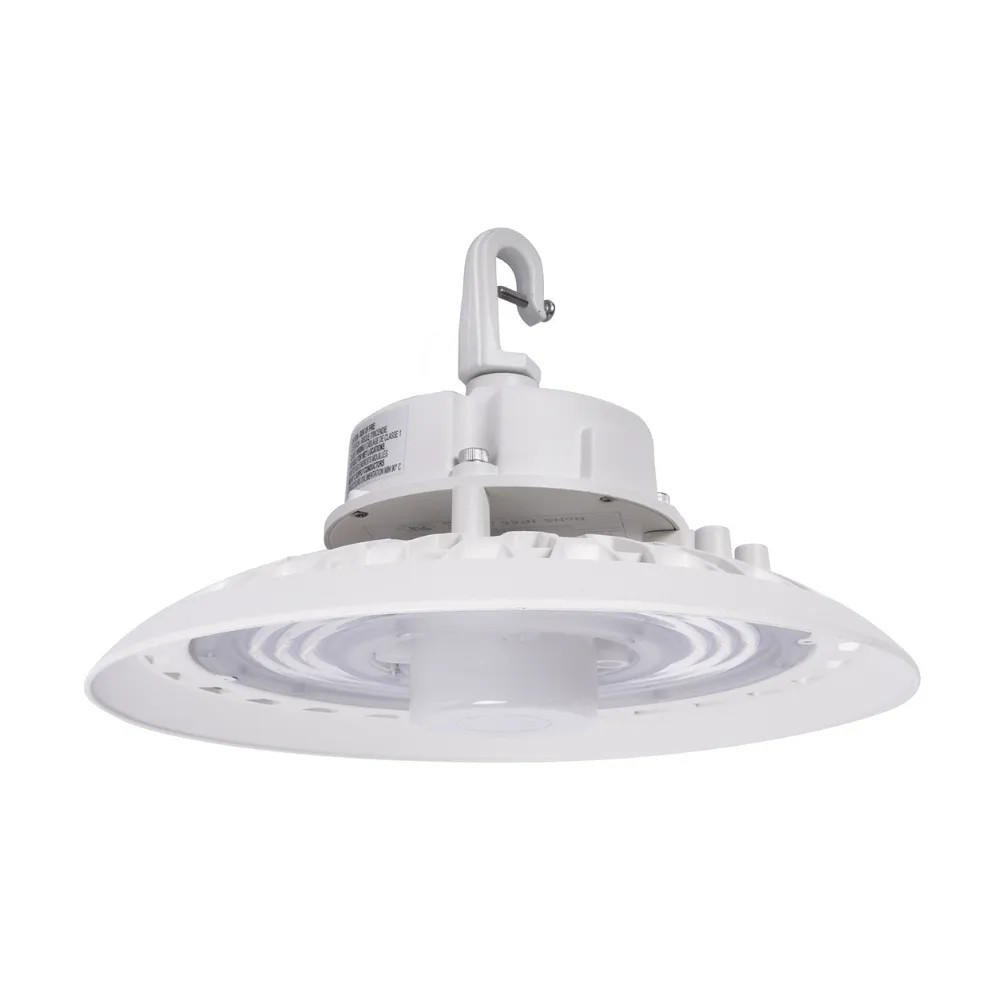

FX11HBR100/90/850/WH/IP66 High-Performance Round High Bay Fixture | Daylight | IP66 Wet-Location Industrial Lighting
Specifically designed for high-ceiling industrial and commercial spaces, this round LED high bay simplifies upgrades by delivering bright Daylight output, robust wet-location protection, and integrated control-ready features that reduce maintenance and energy use.
KEY FEATURES:
- Rugged Wet-Rated Design: IP66 housing protects luminaire for reliable outdoor or harsh indoor environments.
- High Output: Produces 15,321 lumens for strong area illumination while maintaining high efficacy.
- Control Ready: 0-10V dimming (only with sensor) and an AUX 12V line enable sensor and control integrations.
- Durable Electricals: >0.9 power factor and 4KV surge protection enhance reliability in industrial settings.
- Flexible Mounting: Designed for hook or pendant installations for fast, secure mounting in warehouses and factories.
- Long Service Life: 50,000 hour rated life with a 5-year warranty reduces replacement frequency and downtime.
APPLICATIONS:
- Ideal for warehouses and distribution centers requiring high-ceiling illumination.
- Well suited for manufacturing floors and industrial plants with wet/dust exposure.
- Appropriate for gymnasiums, large retail spaces, and commercial garages.
- Tip: Pair with microwave or motion sensors (accessory P10319) to maximize energy savings and runtime.
SPECIFICATIONS:
- Model Number: FX11HBR100/90/850/WH/IP66
- Stock Code: 9469
- Category: LED Round Highbay
- Mounting: Hook / Pendant
- Housing Color: White
- Tested Wattage: 151W
- Lumens: 15,321
- Efficacy: 101.56 LPW
- CRI: 80
- Color Temperature: 5000K
- Beam Angle: 90°
- Input Voltage: 120~277V
- Frequency: 50/60 Hz
- Input Current: 1.11 A
- Power Factor: >0.9
- Surge Protection: 4KV
- Dimmable: 0-10V (only with sensor)
- AUX(12V) Line: Yes
- IP Rating: IP66
- Rated Life: 50,000 hours
- Warranty: 5 years
