Description

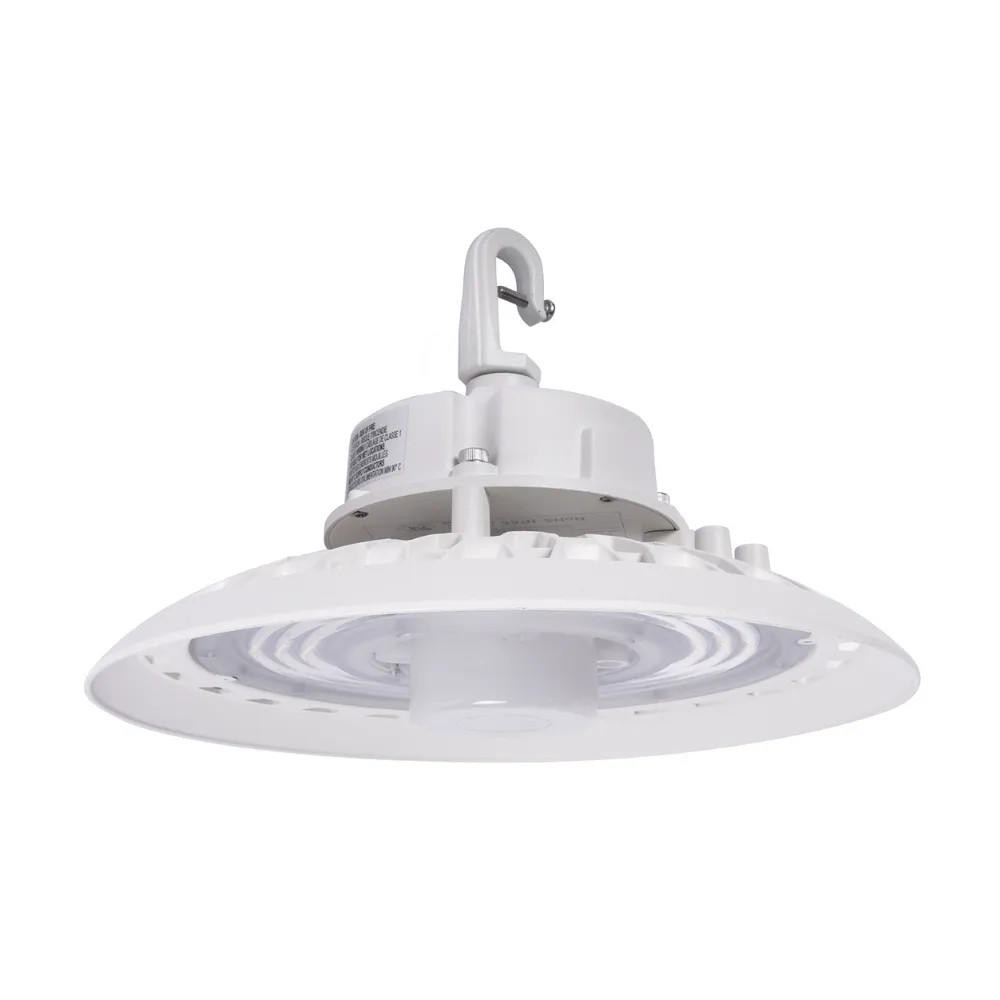

FX13HBR150/90/850/WH/IP66 High-Efficiency 150W LED High Bay Fixture | Daylight (5000 K) | Wet-Location Commercial Lighting
Engineered for fast installation and low maintenance in large commercial spaces, this high-output LED high bay delivers energy savings and consistent Daylight illumination to reduce relamping and downtime.
KEY FEATURES:
- High Output: Delivers 23,097 lumens to illuminate large warehouse and industrial areas with fewer fixtures.
- Robust Protection: IP66-rated housing provides dust-tight and powerful water protection for wet or harsh locations.
- Energy Efficient: 150W replacement with tested wattage of 151.27W and 153 lm/W efficacy cuts energy use vs older HID systems.
- Integrated Controls: 0-10V dimming (only with sensor) and AUX 12V line enable occupancy sensing and daylighting strategies.
- Durable Design: 50,000 hour rated life and 5-year warranty reduce lifecycle maintenance and replacement costs.
APPLICATIONS:
- Ideal for warehouses and distribution centers
- Well suited for manufacturing and industrial facilities
- Appropriate for gymnasiums and large retail spaces
- Usage Tip: Pair with Microwave Sensor (Item# P10319) for occupancy-based dimming and additional energy savings.
SPECIFICATIONS:
- Model Number: FX13HBR150/90/850/WH/IP66
- Stock Code: 9470
- Category: LED Round Highbay
- Wattage: 150W
- Tested Wattage: 151.27W
- Lumens: 23,097
- Efficacy: 153 lm/W
- CRI: 80
- Color Temperature: Daylight (5000 K)
- Beam Angle: 90°
- Input Voltage: 120~277
- Voltage Frequency: 50/60 Hz
- Input Current: 1.67 A
- Power Factor: >0.9
- Surge Protect Level: 4KV
- Dimmable: 0-10V (only with sensor)
- IP Rating: IP66
- Rated Life: 50,000 hrs
- Warranty: 5 years
- Mounting: Hook / Pendant
- Housing Color: White
- AUX (12V) Line: Yes
