Description

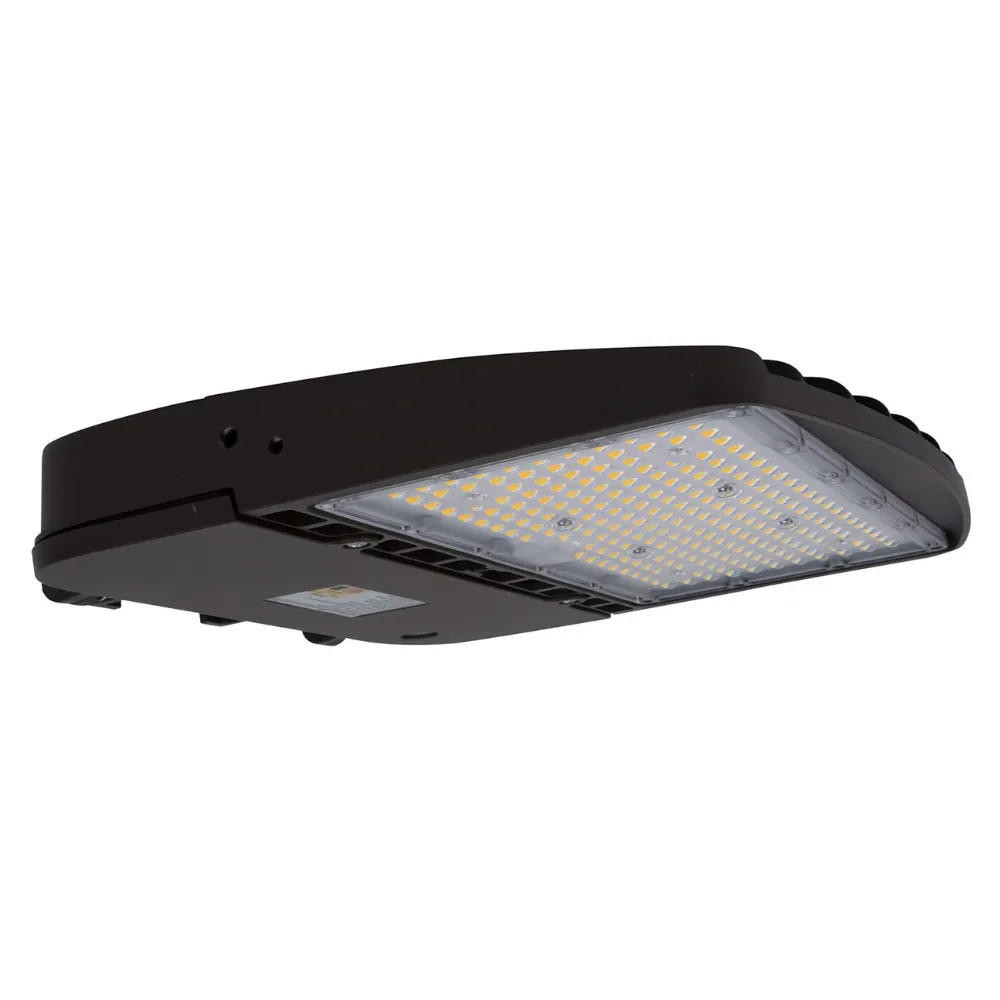

FXCAL100/850/BZ/3S High-Performance Compact Area LED Fixture | Daylight (5000 K) | 1-10V Dimmable Photocell Ready
Engineered for reliable outdoor illumination, this compact area luminaire delivers high-output Daylight light while minimizing maintenance and energy costs for parking lots, walkways, and site perimeters. Its IP65 housing and efficient optics provide consistent performance in harsh environments.
KEY FEATURES:
- Robust Outdoor Protection: IP65-rated bronze housing resists moisture and dust for dependable exterior performance.
- High Output & Efficiency: Produces bright Daylight illumination with exceptional lumen efficacy to reduce energy use.
- Flexible Controls: 1-10V dimming enables smooth light level adjustments and energy savings when paired with controls.
- Surge Protection: Built-in 6KV surge protection helps safeguard the fixture against transient events.
- Long-Life Design: Rated for 50,000 hours to lower maintenance and replacement cycles.
APPLICATIONS:
- Ideal for parking lots and perimeter site lighting upgrades.
- Well suited for roadway corridors, campuses, and commercial yards.
- Great for municipal, retail, and industrial outdoor lighting projects.
- Usage Tip: Pair with the photocell kit for dusk-to-dawn automatic control and added energy savings.
SPECIFICATIONS:
- Wattage: 100W
- Lumens: 14,100
- Efficacy: 141 lm/W
- Color Temperature: 5000K
- CRI: >80
- Input Voltage: 100 ~ 277V
- Dimmable: 1-10V
- Surge Protect Level: 6KV
- Power Factor: >0.9
- THD: ≤ 20%
- Input Current: 0.83A (@120V)
- Rated Life: 50,000 hrs
- IP Rating: IP65
- NEMA Distribution: Type 3
- Warranty: 5 Years
- Housing Color: Bronze (RAL#8019)
- Mounting: Yoke Mount / Slip Fitter (Wall Mount Kit P10379 + P10200 available)
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: UL/ETL, UL/cUL listed
- Performance Files: LM79, LM80 available
- Compliance: DLC V5.1 Premium, RoHS
